Double Shaft Shredder

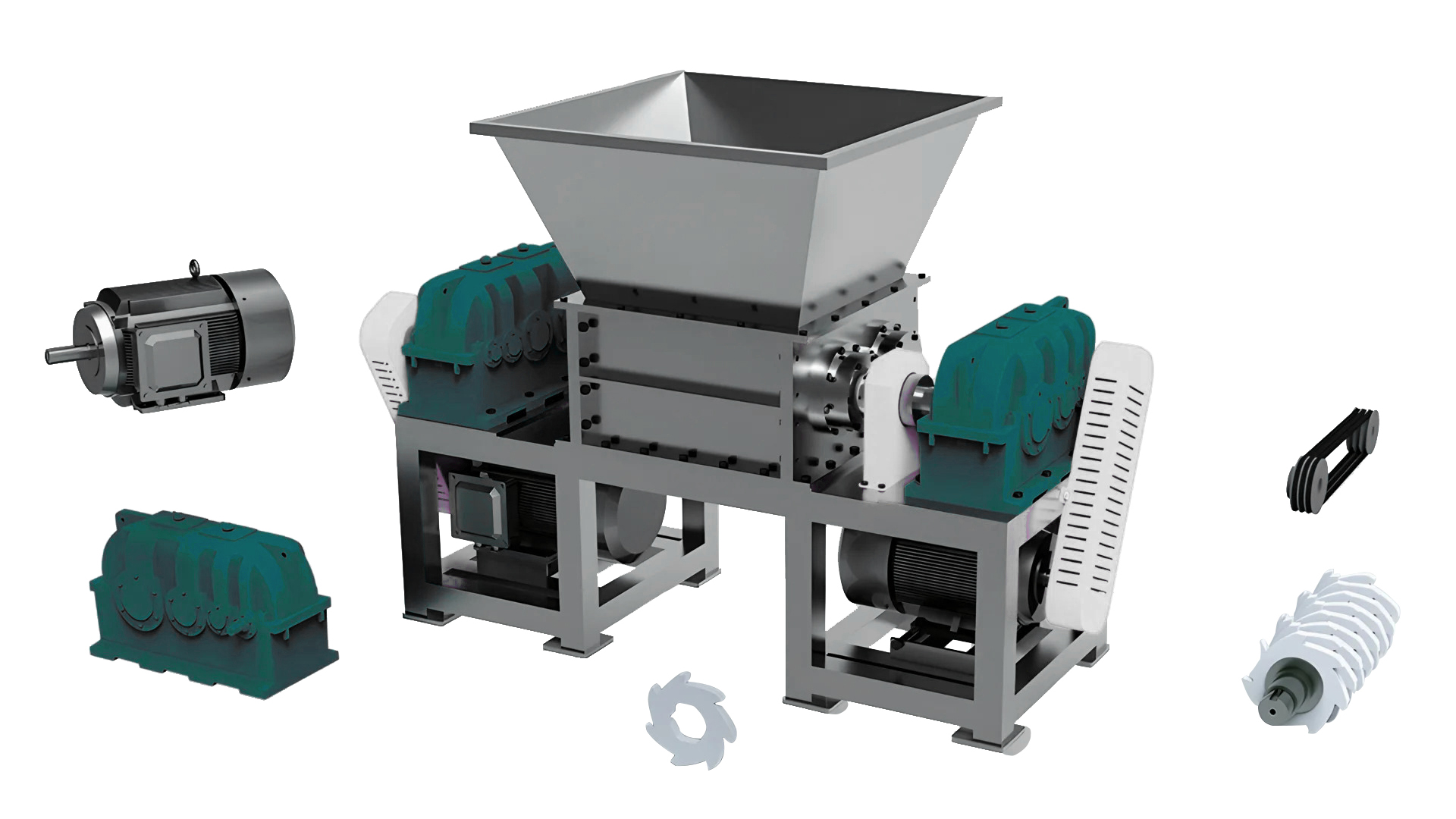

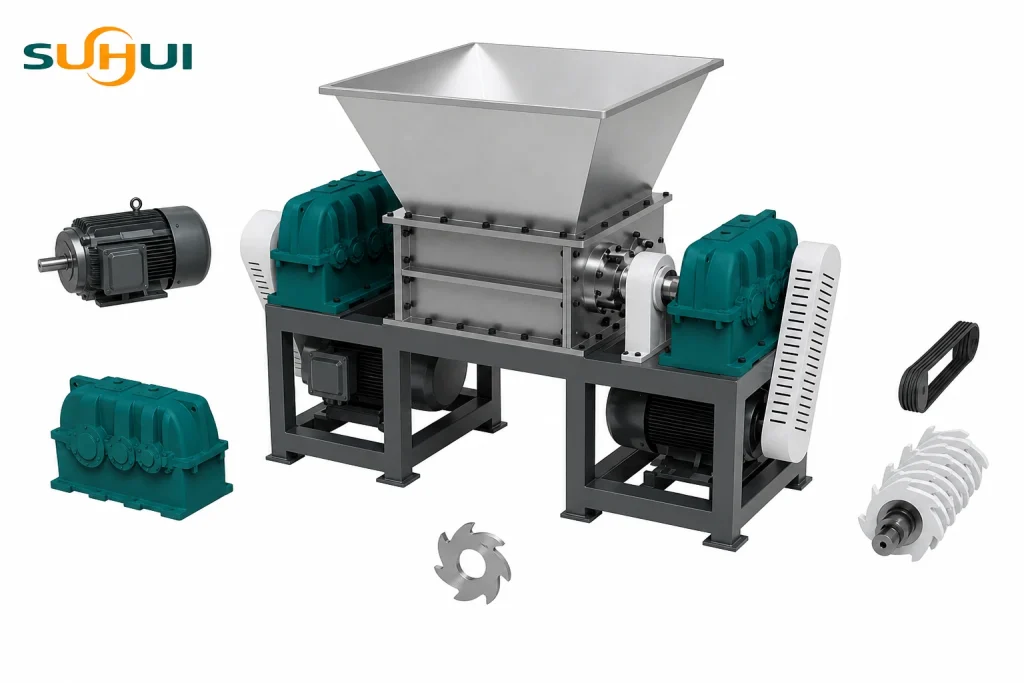

The SUHUI double shaft shredder machine is a heavy-duty industrial machine engineered for first-stage size reduction of bulky, thick-walled, and mixed plastic waste. Also known as a dual shaft shredder, twin shaft shredder, or two shaft shredder, it uses two counter-rotating shafts with interlocking hardened steel blades to grip, shear, tear, and compress difficult materials into manageable fragments for downstream recycling.

Compared with a single shaft shredder, the double shaft design focuses on high-torque pre-shredding rather than screen-controlled output sizing. This makes it a practical industrial plastic shredder for large plastic drums, industrial containers, HDPE and PP pipes, jumbo bags, plastic profiles, sheets, film bales, and mixed rigid plastic waste that may be difficult to feed directly into a granulator or washing line.

With hydraulic overload protection, auto-reverse control, a reinforced frame, and PLC operation, the machine helps recycling plants reduce oversized plastic waste, protect downstream equipment, and create a stable material flow before granulation, washing, or pelletizing.

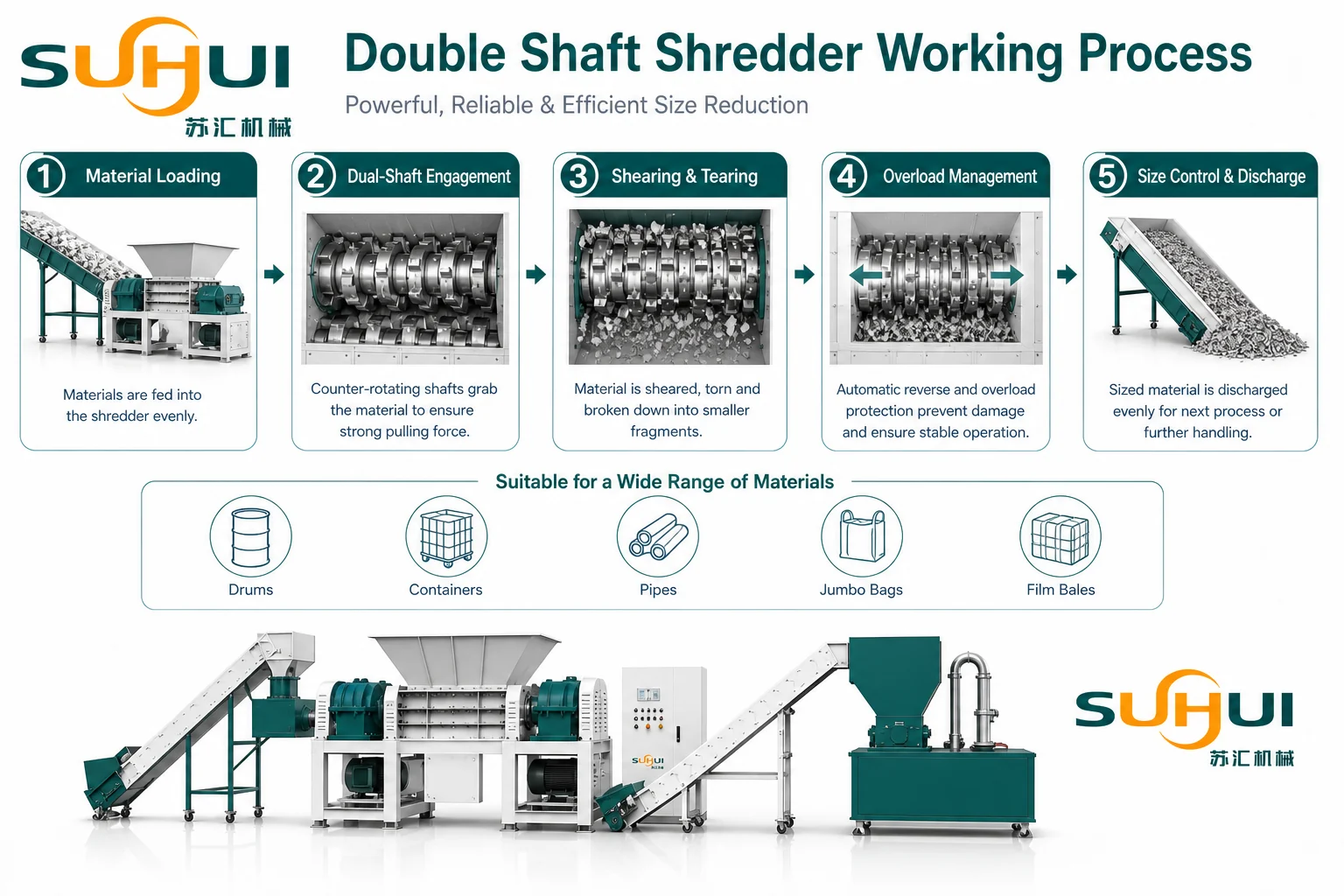

Double shaft shredder working process from material loading, dual-shaft engagement, shearing and tearing, overload management, and discharge for downstream handling.

Key Features of SUHUI Double Shaft Shredder

• Dual Counter-Rotating Shaft System: Two shafts pull bulky materials inward from both sides, improving feeding stability for oversized or irregular plastic waste.
• Interlocking Hardened Steel Blades: Double shaft shredder blades shear and tear material through a scissor-cut action, reducing plastic drums, containers, pipes, profiles, and jumbo bags into rough fragments.
• High-Torque Low-Speed Operation: As a low speed high torque shredder, the machine provides strong pulling force while helping reduce dust, noise, and sudden impact loads.
• Hydraulic Overload Protection: Hydraulic pressure control helps protect shafts, bearings, gearboxes, and the cutting chamber when resistance rises unexpectedly.
• Auto-Reverse Function: When excessive resistance or a jam is detected, the shafts reverse automatically to release the blockage before forward shredding resumes.

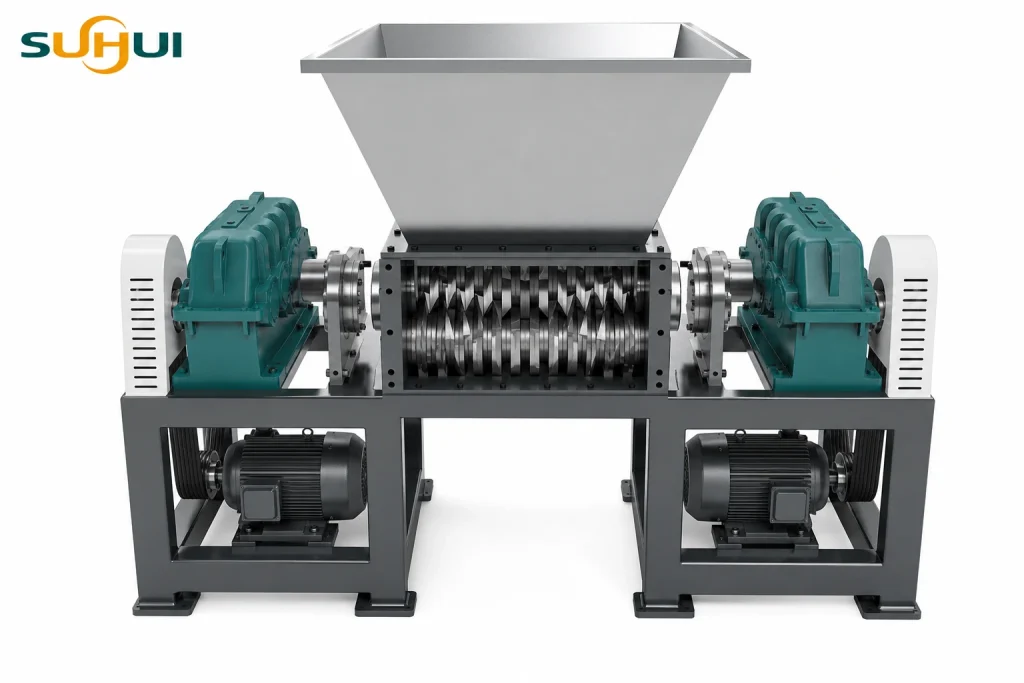

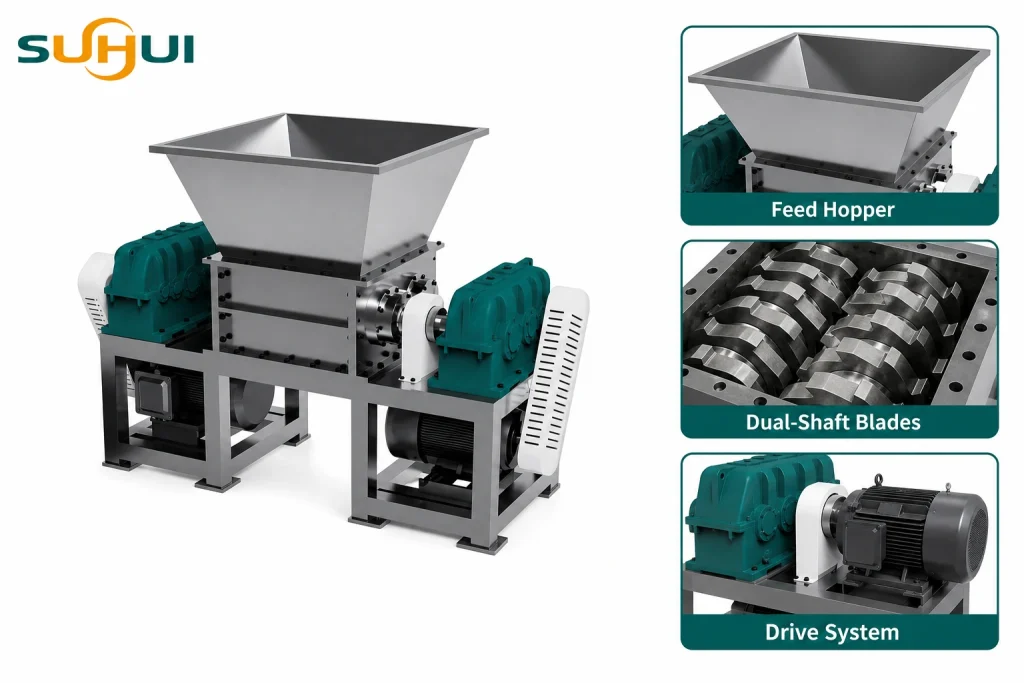

• Heavy-Duty Reinforced Frame: Thick steel construction supports continuous industrial operation with bulky, thick-walled, and mixed feedstocks.

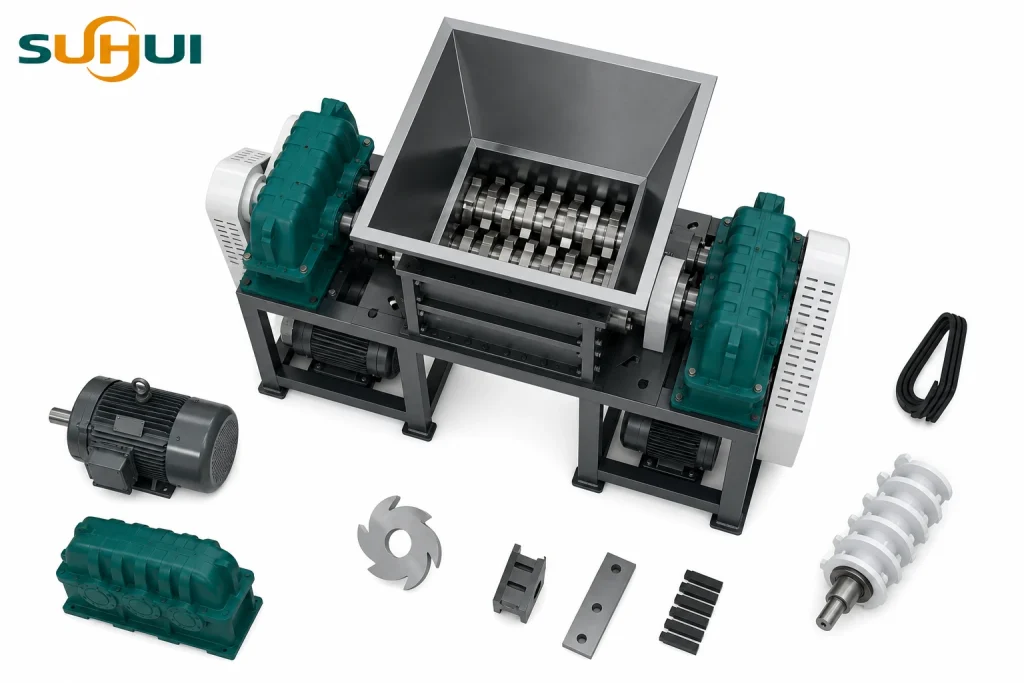

• Large Feed Hopper: Wide hopper design accepts drums, containers, pipes, profiles, film bales, and other irregular materials with less pre-cutting.
• Modular Blade Configuration: Blade spacing and geometry can be selected according to material type and required first-stage output size.
• PLC Control Panel: Touchscreen control supports operating status monitoring, reverse logic, overload response, and safer daily operation.
• Operator Safety Systems: Emergency stop, safety door interlocks, vibration monitoring, and controlled access points help protect operators and equipment.

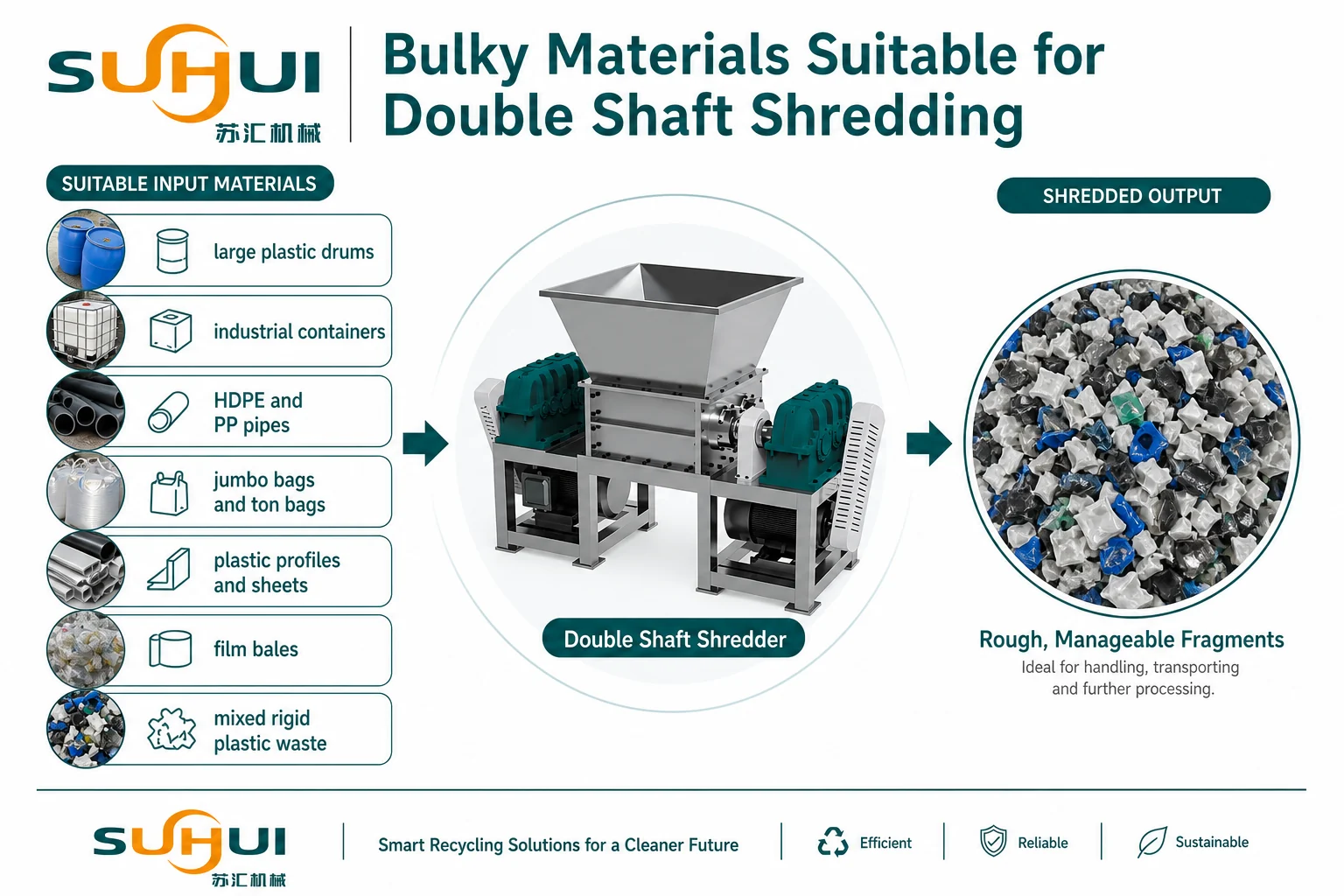

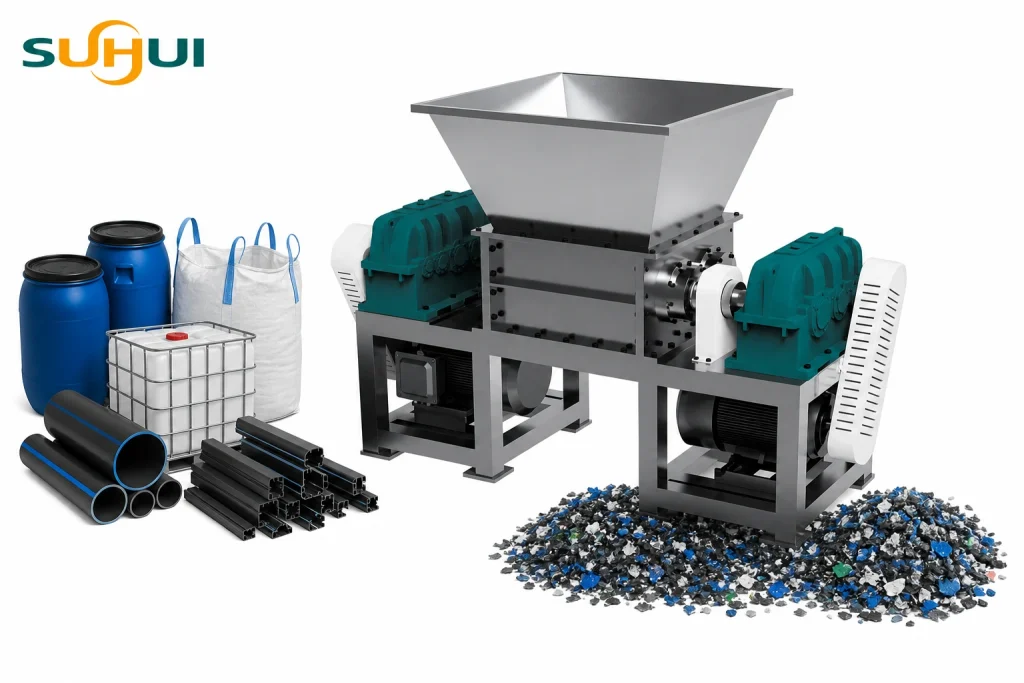

The machine is designed for bulky plastic waste such as drums, containers, HDPE and PP pipes, jumbo bags, profiles, sheets, film bales, and mixed rigid plastic waste.

When to Choose a Dual Shaft Shredder Machine

A dual shaft shredder machine is recommended when the material is too large, too thick, or too irregular for direct granulation. For recycling plants handling mixed post-industrial plastic waste, bulky containers, pipe sections, or compressed bales, this type of plastic shredder machine works as a front-end reducer that prepares material for finer processing.

If the goal is to produce a precise particle size in one step, a single shaft shredder or granulator may be more suitable. If the first problem is feeding, gripping, and breaking down oversized material, a twin shaft shredder is usually the better starting point.

How the Dual-Shaft Cutting System Works

1. Material Loading: Bulk plastic waste is loaded into the feed hopper by conveyor, forklift, or manual feeding depending on plant layout.
2. Dual-Shaft Engagement: Two counter-rotating shafts grip material from both sides and pull it into the cutting chamber.
3. Shearing & Tearing: Interlocking blades apply a scissor-cut action, tearing and compressing thick or irregular materials into smaller fragments.
4. Overload Management: If high resistance is detected, the hydraulic system and control logic trigger a reverse sequence to release the blockage.
5. Size Control & Discharge: Rough shredded fragments discharge from the lower outlet and move to the next process, such as a granulator, single shaft shredder, washing line, or pelletizing line.

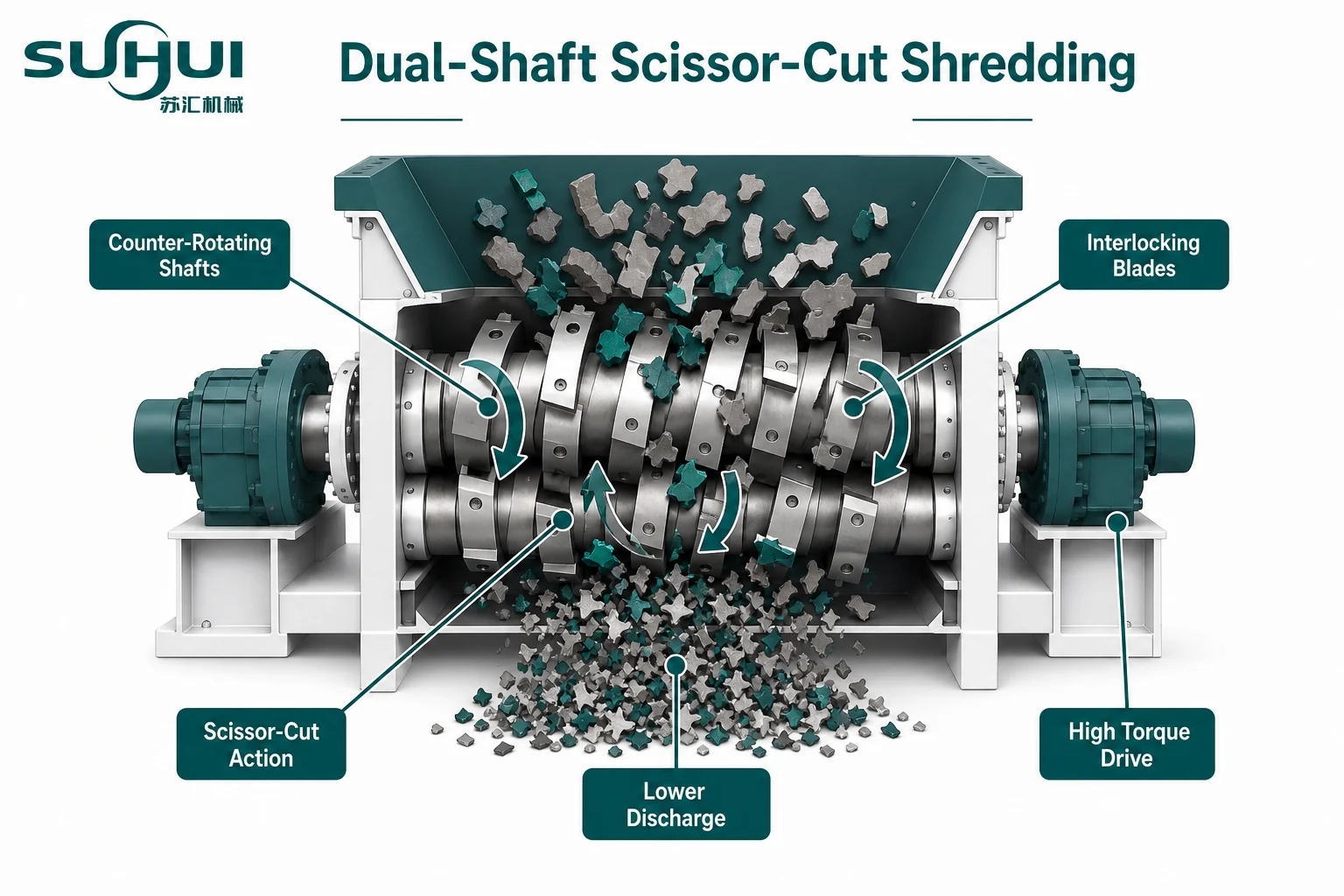

Two counter-rotating shafts and interlocking blades create a scissor-cut action that pulls, shears, and tears bulky plastic waste before lower discharge.

Output and Size Control

This dual-shaft system does not use a bottom screen like a single shaft shredder or granulator. Its output is controlled mainly by blade width, blade hook design, shaft gap, shaft speed, and material characteristics. The result is usually a rough, irregular first-stage fragment suitable for conveying, storage, washing, or additional size reduction.

This makes the machine especially useful before granulators and washing lines. It reduces oversized plastic waste into a more manageable feed form, helping downstream equipment run with steadier loading and fewer oversized blockage problems. For facilities comparing plastic waste shredder options, the key advantage is reliable first-stage reduction rather than final particle-size precision.

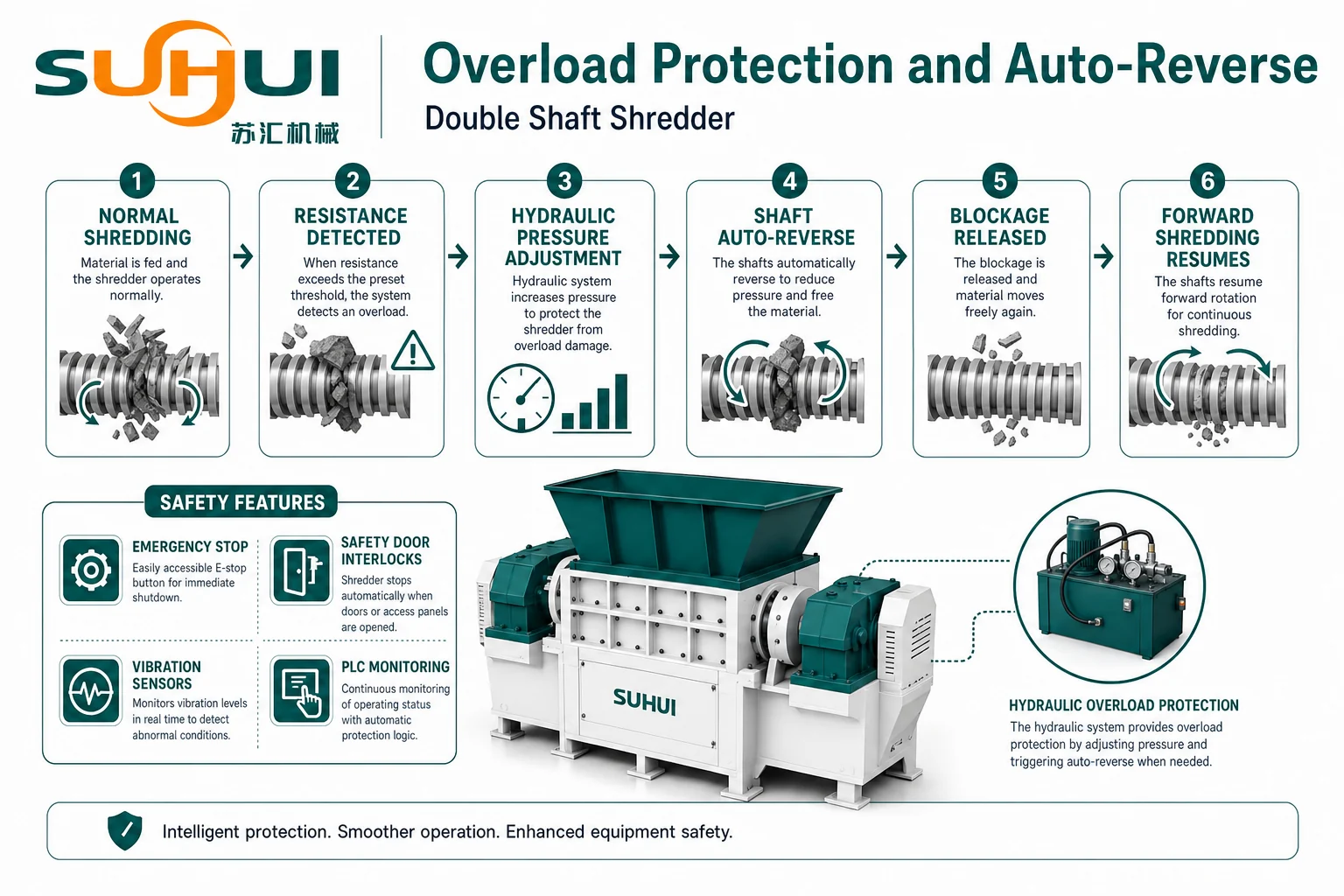

Hydraulic overload protection and auto-reverse control help release blockages and protect the drivetrain during heavy-duty shredding.

Double Shaft vs Single Shaft Shredder

A double shaft shredder is the better choice when the main challenge is feeding and breaking down large, thick-walled, or irregular materials. It uses two shafts and high torque to pull material inward, making it suitable for first-stage size reduction.

A single shaft shredder is better when output size consistency is more important. It uses one rotor with fixed counter-blades and a screen basket, so only fragments small enough to pass through the screen can discharge. Many recycling lines use a dual-shaft machine first, then a single shaft shredder or granulator for finer sizing.

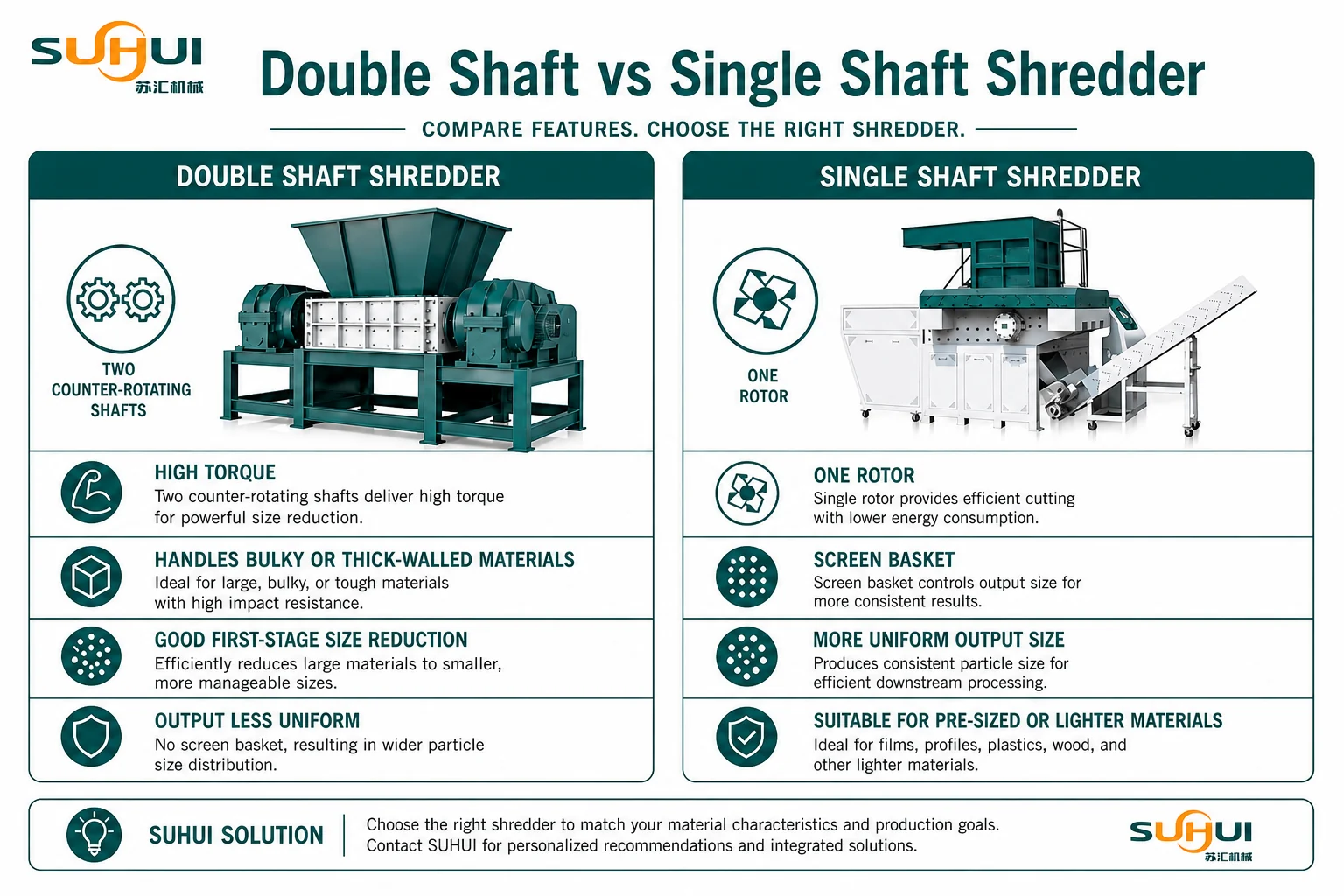

Double shaft shredders focus on high-torque first-stage size reduction, while single shaft shredders provide more screen-controlled output size.

Downstream Applications

First-stage shredder output can be conveyed to a granulator for finer size reduction, a single shaft shredder for more controlled output, a recycling washing line for cleaning and separation, or a pelletizing line after suitable preparation. In integrated recycling systems, this industrial plastic shredder often works as the front-end machine that turns bulky plastic waste into a stable material stream.

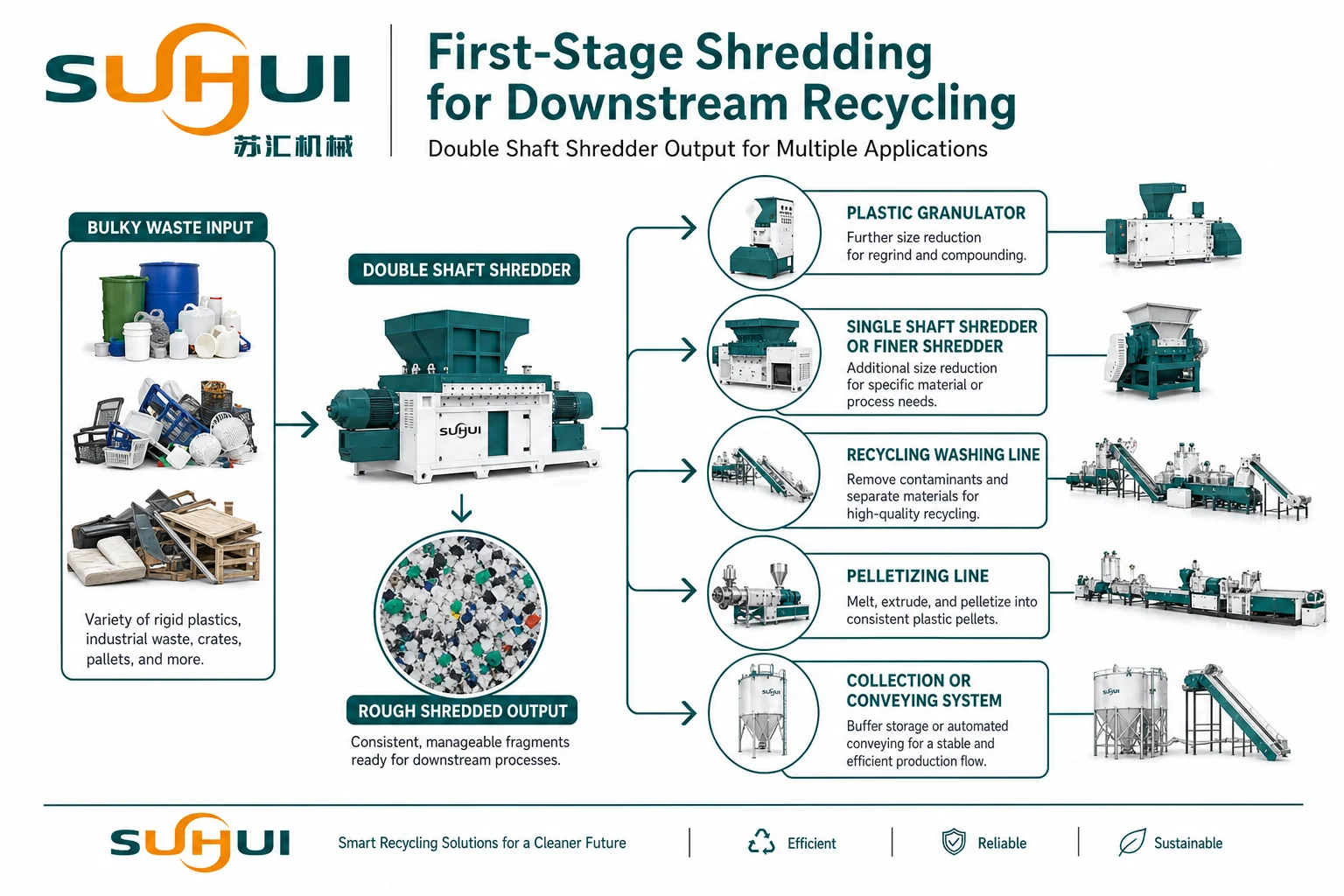

First-stage shredded output can feed granulators, finer shredders, recycling washing lines, pelletizing lines, and conveying or collection systems.

Frequently Asked Questions

What is a dual shaft shredder used for?

A dual shaft shredder is used for first-stage size reduction of bulky plastic waste before finer recycling processes. It handles large drums, industrial containers, HDPE and PP pipes, jumbo bags, plastic profiles, sheets, film bales, and mixed rigid plastic waste.

Is a twin shaft shredder better than a single shaft shredder for bulky plastic waste?

A twin shaft shredder is better for bulky, thick-walled, or irregular plastic waste because two counter-rotating shafts pull material inward with high torque. A single shaft shredder is better when screen-controlled, more uniform output size is the main requirement.

What is the shredding of plastic waste?

Shredding of plastic waste is the first size-reduction step that turns bulky plastic drums, containers, pipes, jumbo bags, profiles, sheets, and film bales into smaller fragments before granulation, washing, pelletizing, or material separation.

What is the torque of a low speed high torque shredder used for?

The torque of a low speed high torque shredder is used to pull, shear, and tear bulky plastic waste without relying on high rotor speed. Strong torque is useful for thick-walled containers, pipes, bales, and mixed industrial scrap.

How do double shaft shredder blades affect output size?

Double shaft shredder blades affect output size through blade width, hook design, spacing, shaft gap, and cutting geometry. Because the machine normally does not use a screen, its output is rough first-stage material for conveying or further size reduction.

What downstream equipment can use plastic waste shredder output?

Plastic waste shredder output can feed granulators, single shaft shredders, recycling washing lines, pelletizing lines, collection bins, silos, or conveying systems. In many recycling plants, the double shaft machine works as the first reduction step.
