Industrial Plastic Shredder: Types, How It Works and What to Look For
Industrial plastic shredders are the front-line machines in virtually every plastic recycling operation. Before plastic waste can be washed, pelletized, or reprocessed, it must be reduced from bulky, irregular forms — bottles, pipes, films, bales, and bags — into manageable fragments. Choosing the right industrial plastic shredder for your material stream determines throughput efficiency, downstream processing quality, and overall line economics.
This guide explains how industrial plastic shredders work, the four main machine types SUHUI manufactures, how a shredder differs from a granulator, and what specifications to evaluate when selecting a system.
What Is an Industrial Plastic Shredder?
An industrial plastic shredder is a heavy-duty size-reduction machine that uses rotating blades or shafts to cut, tear, and compress plastic waste into smaller, uniform fragments. Unlike office paper shredders or light-duty household equipment, industrial plastic shredders are engineered for continuous high-volume operation, processing materials ranging from thin film to thick-walled HDPE pipe sections.
Shredding is typically the first mechanical step in a plastic recycling line. It reduces the bulk density of incoming waste, making downstream handling — conveying, washing, drying, and pelletizing — far more efficient. A well-matched shredder also controls output particle size, which directly affects washing quality and pelletizing line performance.
SUHUI’s range of industrial plastic shredder machines covers single-shaft, double-shaft, pipe, and jumbo bag configurations, with capacities from 300 kg/h to over 3,000 kg/h.
For context on where shredding fits within a complete recycling system, see: Plastic Recycling Line: Types & How to Choose →

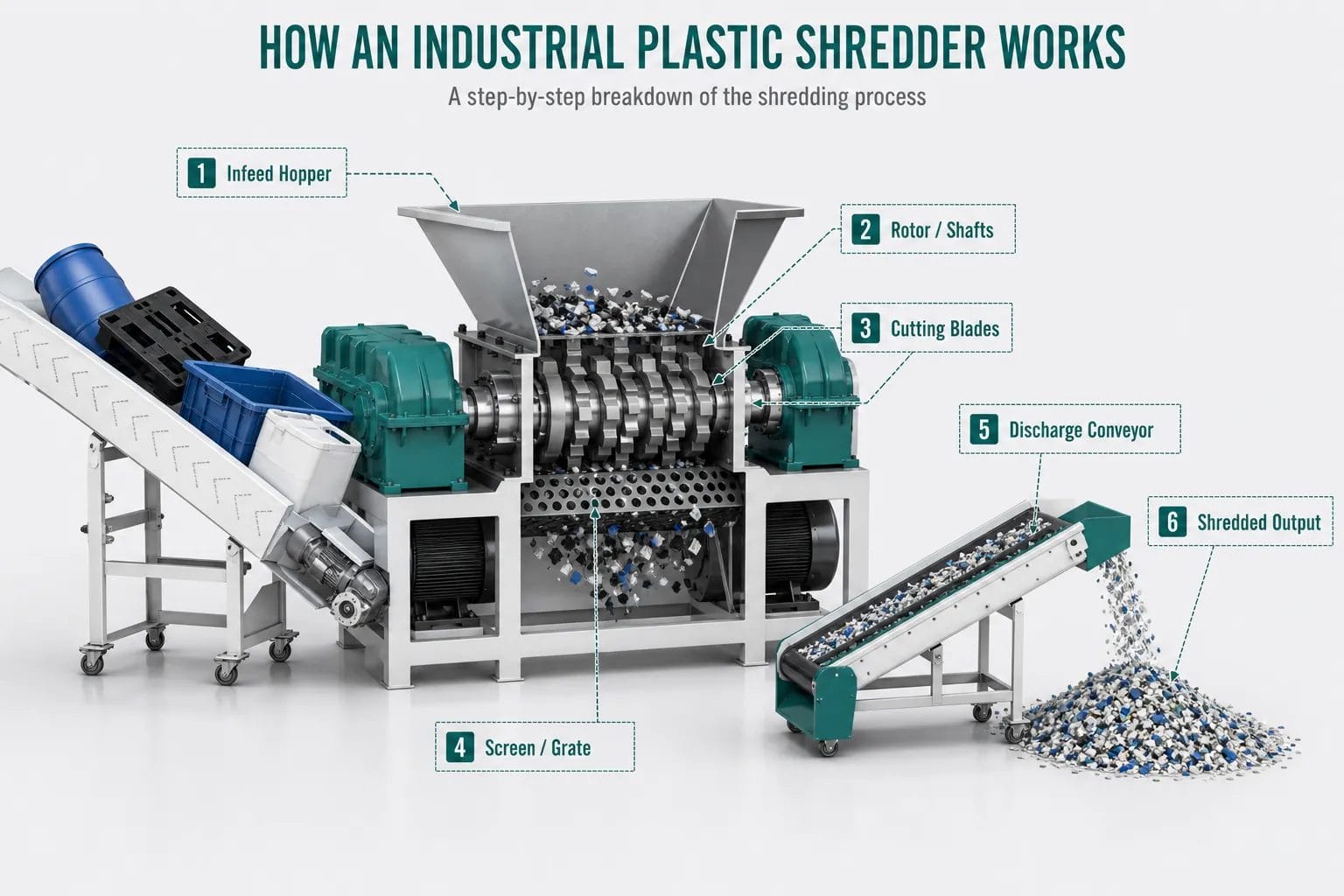

How an Industrial Plastic Shredder Works
Despite differences between machine types, all industrial plastic shredders share the same fundamental operating principle: a powered rotor or shaft assembly forces plastic material against stationary counter-blades or a second rotating shaft. The interaction tears and cuts the plastic into fragments that pass through a screen mesh to control maximum output size.
The core components in every machine are:
| Component | Function |
|---|---|
| Infeed hopper | Receives raw material; may include conveyors or hydraulic ram feeders for dense or bulky waste |
| Rotor / shaft assembly | Carries the rotating blades; determines cutting action and torque characteristics |
| Fixed counter-blades | Create the shear point against which the rotor blades cut the material |
| Screen / grate | Controls maximum fragment size; material recirculates until it passes through |
| Drive system | Electric motor with gearbox or hydraulic drive; matched to material hardness and throughput |
| Discharge conveyor | Removes shredded output for downstream processing |
Operating speed varies significantly by machine type. Single-shaft shredders typically run at 50–120 RPM, using high torque to cut through rigid materials. Double-shaft shredders operate at similarly low speeds but use the interaction between two counter-rotating shafts to grip and tear material.

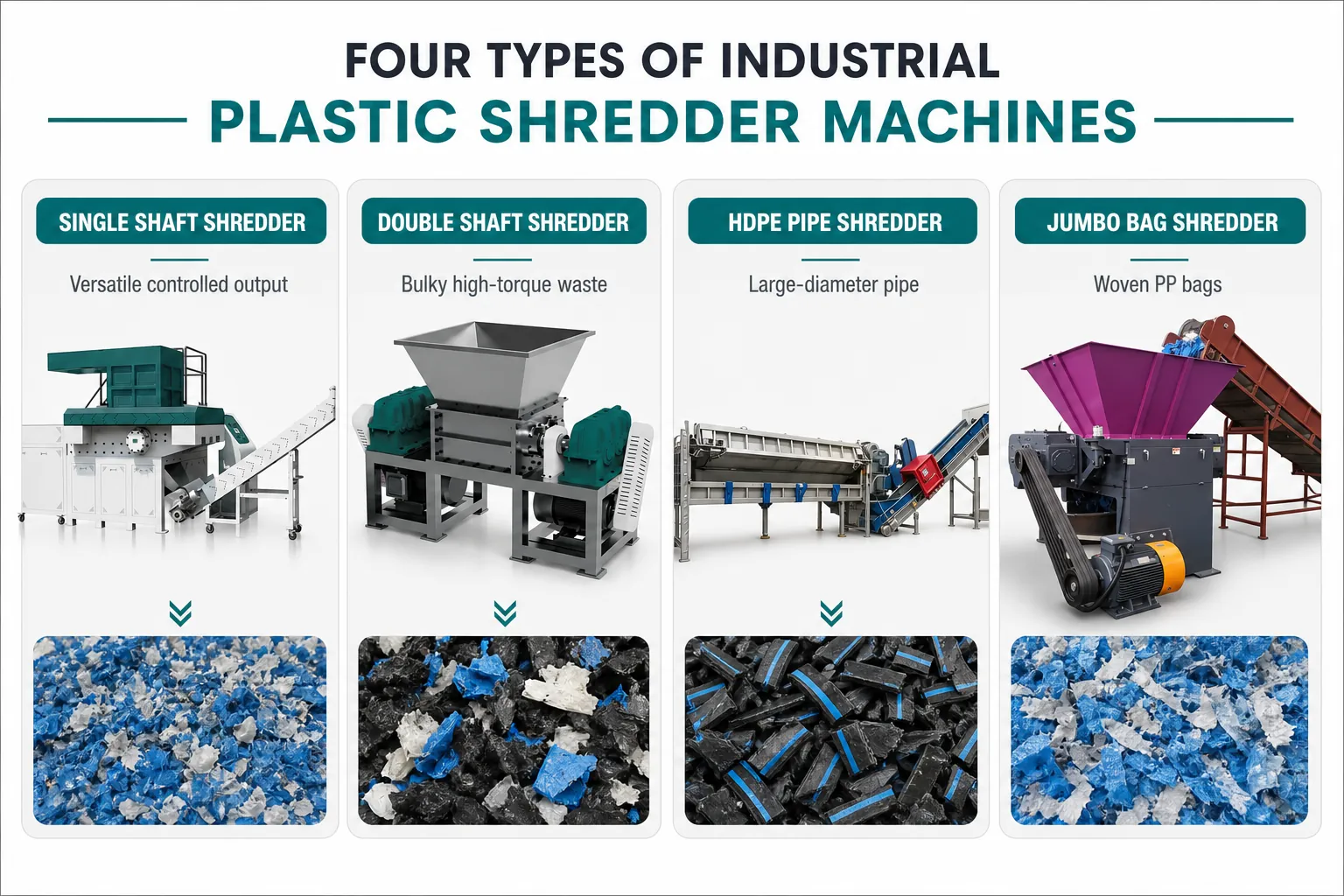

Types of Industrial Plastic Shredder Machines

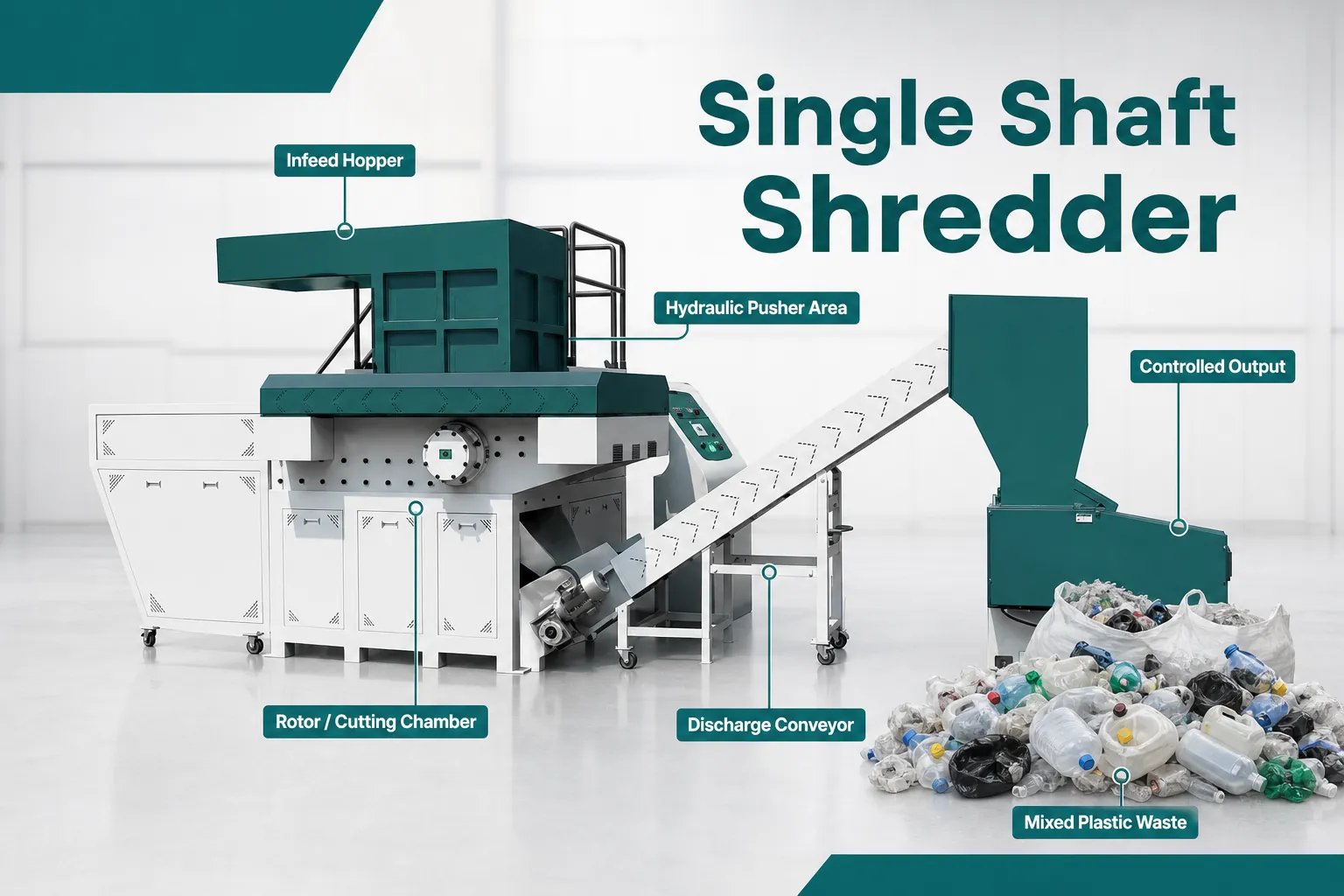

Single Shaft Shredder
A single shaft shredder uses one powered rotor fitted with rows of hardened steel blades that mesh with fixed counter-blades in the cutting chamber. A hydraulic ram or pusher plate feeds material into the cutting zone, ensuring consistent contact between the waste and the rotor.
Best suited for:
- PP and PE films, woven bags, and raffia
- Rigid plastic containers, bottles, and crates
- Plastic pipes and profiles (small to medium diameter)
- Post-industrial trim scrap and edge trim
Output size: Controlled by interchangeable screen grates, typically 20–80 mm. Screens are swapped to match downstream requirements — larger screens for pre-washing, smaller screens for direct granulating infeed.
Single shaft shredders are the most versatile option for recycling lines handling mixed rigid or semi-rigid waste. Their relatively simple blade geometry makes blade replacement straightforward.

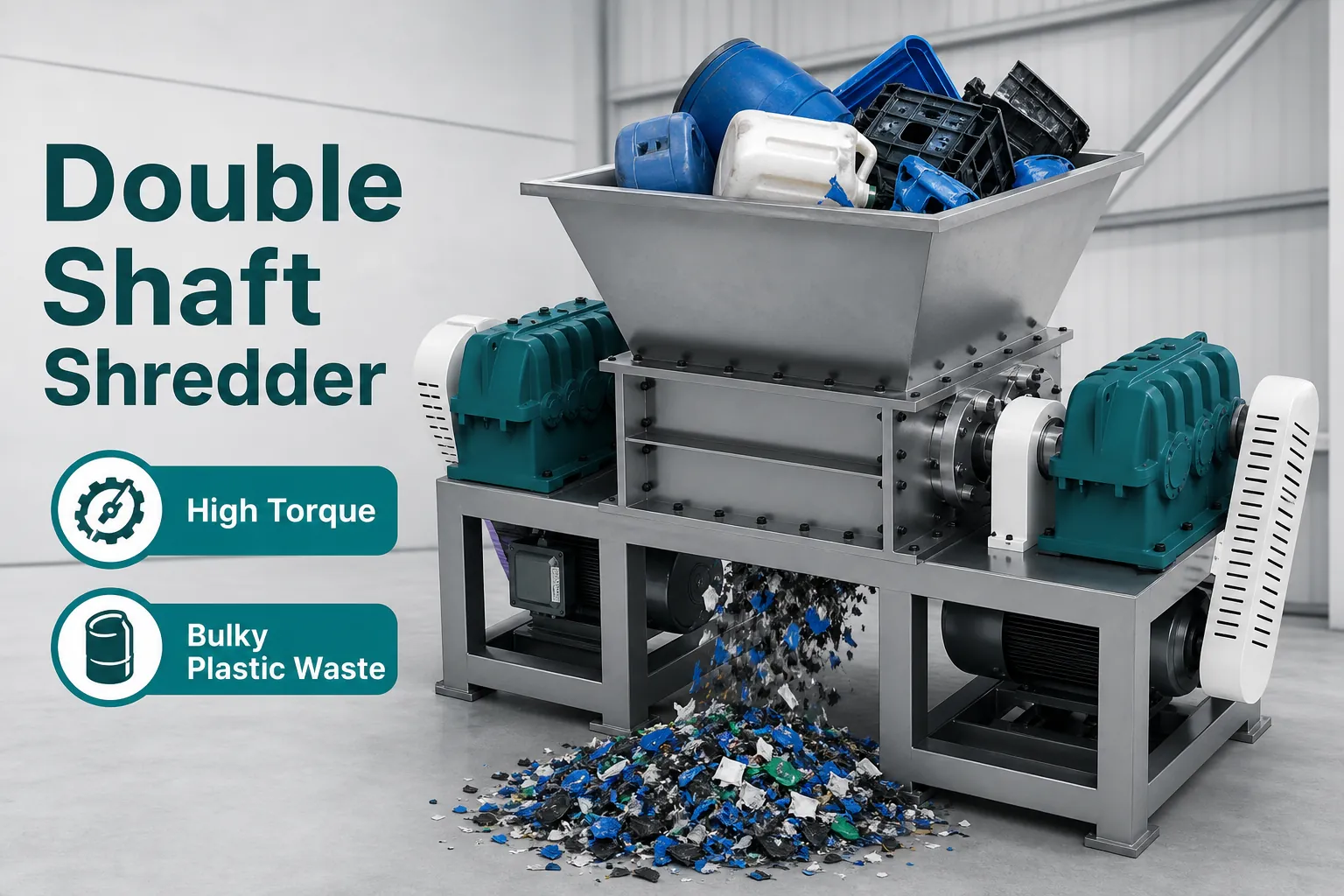

Double Shaft Shredder
A double shaft shredder uses two counter-rotating shafts with interlocking hardened steel blades. As material enters the cutting chamber, both shafts grip and pull it downward simultaneously, generating extremely high shear force. No hydraulic pusher is needed — the twin shafts self-feed material through the cutting zone.
Best suited for:
- Bulky rigid plastic waste: large containers, drums, automotive parts
- Mixed or contaminated post-consumer plastic bales
- Thick-walled pipe and profile offcuts
- Jumbo bags (FIBCs) in high-volume applications
Output size: Typically coarser than single shaft machines, in the range of 40–150 mm. Double shaft shredders are commonly used for primary size reduction before a secondary single shaft shredder provides a finer cut.
The high-torque, low-speed operation minimises heat generation, reducing the risk of thermal degradation in heat-sensitive materials like PET or PVC.

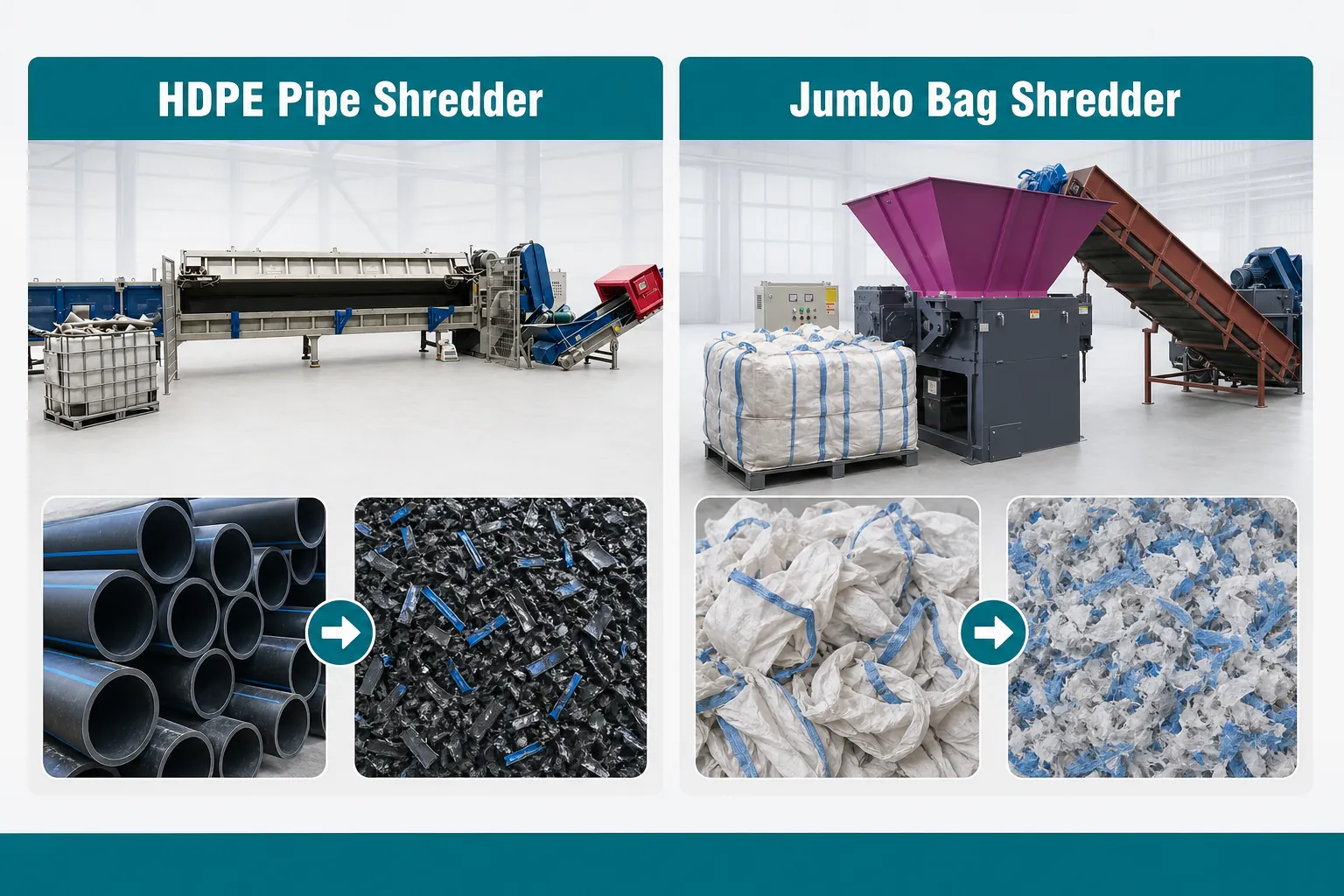

HDPE Pipe Shredder
The HDPE pipe shredder is a purpose-built machine engineered to process large-diameter HDPE, PPR, and PE pipes — including sections up to 1,200 mm in diameter — that cannot be fed into standard shredder infeed hoppers.
Best suited for:
- End-of-life municipal water supply and gas distribution pipes
- Large-diameter irrigation and drainage pipe waste
- Post-industrial pipe offcuts from extrusion lines
- Bulky agricultural HDPE fittings
An extra-wide infeed opening accommodates full-diameter pipe sections without pre-cutting. Heavy-duty blade carriers handle the significant wall thickness of industrial-grade HDPE pipe. Output fragments are sized for direct infeed to a washing line or pelletizing line.
Jumbo Bag Shredder
The jumbo bag shredder is a specialist machine designed to process FIBCs (Flexible Intermediate Bulk Containers) — commonly known as jumbo bags, ton bags, or bulk bags — made from woven polypropylene (PP).
Best suited for:
- Used PP woven jumbo bags from chemical, food, and agricultural industries
- PP raffia and woven fabric waste
- Non-woven PP bags and packaging
Jumbo bags are difficult to process in standard shredders because their flexible woven structure tends to wrap around shafts rather than cut cleanly. The jumbo bag shredder uses a blade geometry specifically designed to cut woven PP fabric without tangling.

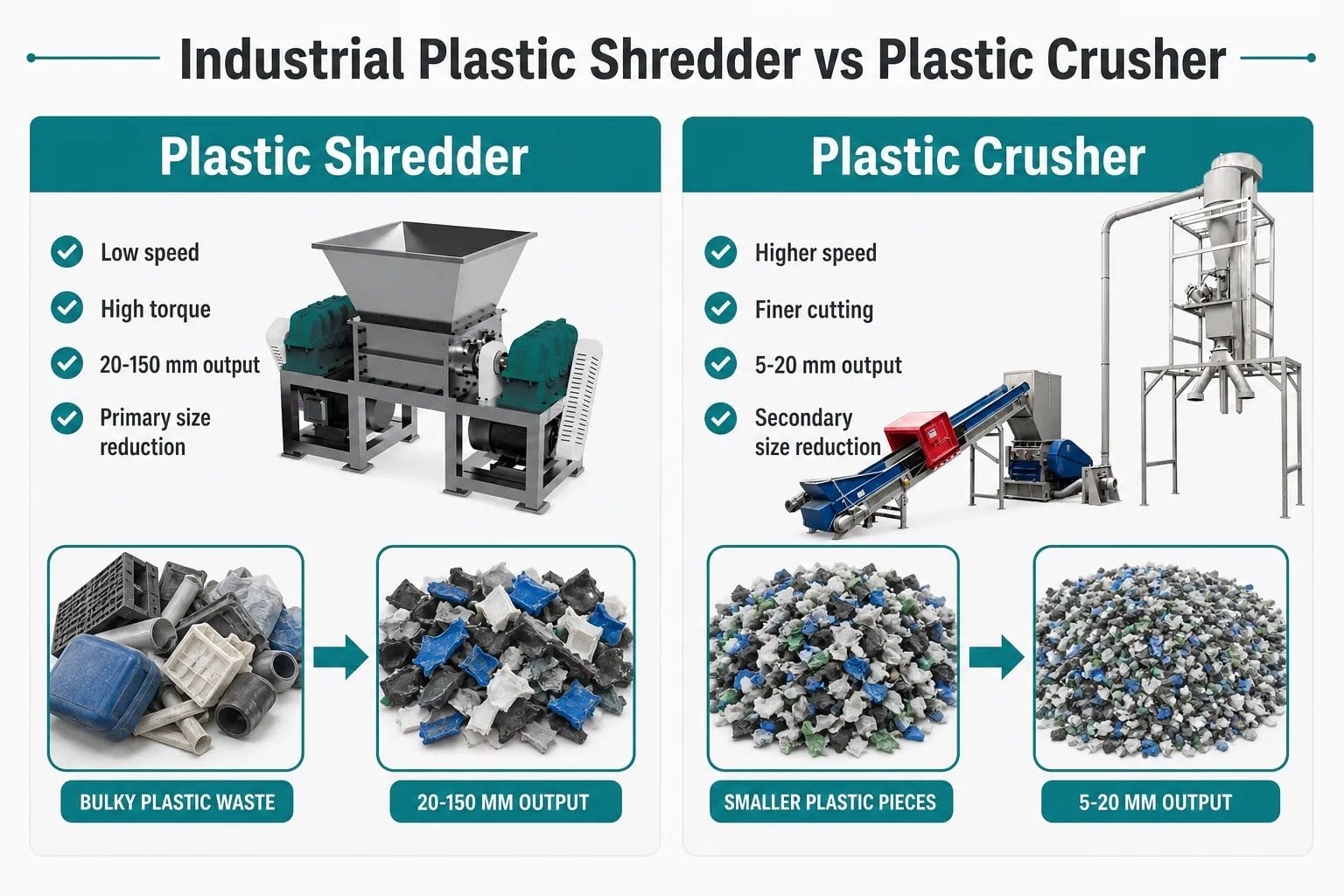

Industrial Plastic Shredder vs Granulator: Key Differences
Shredders and granulators both reduce plastic size, but they serve different roles in a recycling line.
| Shredder | Granulator | |
|---|---|---|
| Operating speed | Low (50–150 RPM) | High (300–600 RPM) |
| Output size | Coarse (20–150 mm) | Fine (5–20 mm) |
| Primary purpose | Bulk size reduction | Precision particle sizing |
| Material handling | Handles bulky, irregular shapes | Requires pre-shredded or smaller input |
| Typical placement | First stage in recycling line | After shredder, before washing or pelletizing |
In most full recycling lines, a shredder handles primary size reduction of bulky material, and a plastic granulator provides secondary, precision cutting to produce uniform flakes or granules ready for washing and pelletizing. The two machines are complementary, not interchangeable.
How to Choose the Right Industrial Plastic Shredder
Selecting the correct shredder depends on five key factors:
1. Input Material Type and Form
The physical form of your waste stream is the primary selection criterion. Woven bags and film require different blade geometry than rigid pipe or thick-walled containers. Match your material to the appropriate shredder design using the type comparison above.
2. Required Throughput
Shredder capacity is rated in kg/h. Match shredder throughput to your downstream washing or pelletizing line capacity with 10–20% headroom. Undersizing the shredder creates a bottleneck; oversizing wastes capital and energy.
3. Target Output Particle Size
If your downstream process is a washing line, a coarser output (40–80 mm) is acceptable. If material feeds directly into a pelletizing line or requires intensive washing to remove labels and contamination, a finer output (20–40 mm) improves cleaning efficiency. Interchangeable screen grates on single shaft shredders provide the most flexibility here.
4. Blade Material and Service Life
Blades are the highest-wear component in any shredder. Look for high-chrome or D2 tool steel blades with adequate hardness (60–65 HRC). Confirm that blades are individually replaceable rather than requiring full rotor replacement, and check the estimated blade life for your specific material. For reference on tool steel grades and hardness standards, see the D2 tool steel specification.
5. Drive System: Electric vs Hydraulic
Electric drives with variable-frequency inverters offer precise speed control and lower maintenance. Hydraulic drives provide extremely high torque for processing heavy, dense materials. For most plastic recycling applications, an electric drive with overload protection is the preferred specification.
Related Products
- Single Shaft Shredder — For films, rigid plastics, pipes and mixed post-consumer waste
- Double Shaft Shredder — For bulky, thick-walled and mixed plastic waste streams
- HDPE Pipe Shredder — For large-diameter HDPE, PPR and PE pipes up to 1,200 mm
- Jumbo Bag Shredder — For PP woven jumbo bags and raffia fabric
- Plastic Granulator — For secondary size reduction and precision granule output
FAQ
What is an industrial plastic shredder used for?
An industrial plastic shredder is used to reduce large plastic waste — including pipes, bottles, containers, woven bags, and film bales — into smaller, uniform fragments for downstream recycling processes such as washing, granulating, and pelletizing. It is typically the first mechanical stage in a plastic recycling line.
What is the difference between a single shaft and double shaft plastic shredder?
A single shaft shredder uses one rotor with a hydraulic ram to feed material against fixed counter-blades, producing a more controlled, finer output. A double shaft shredder uses two counter-rotating shafts that grip and tear material simultaneously, making it better suited for bulky, thick-walled, or mixed waste that a single shaft cannot handle efficiently.
What output particle size does a plastic shredder produce?
Output size depends on the screen grate installed in the machine. Industrial plastic shredders typically produce fragments in the 20–150 mm range. Single shaft shredders with interchangeable screens give the most control, allowing operators to switch between coarser output for washing line infeed and finer output for granulating line infeed by changing the screen grate.
How do I choose between a plastic shredder and a granulator for my recycling line?
If your input material is bulky, irregular, or large-format — pipes, containers, baled film — start with a shredder to perform primary size reduction. If you need fine, uniform granules (5–20 mm) ready for pelletizing or direct reuse, a granulator is the correct machine. Most industrial recycling lines use a shredder followed by a granulator as complementary stages rather than choosing one over the other.
Can one industrial plastic shredder process all types of plastic waste?
No single shredder model handles all plastic types equally well. Woven PP bags require a blade geometry that prevents shaft wrapping. Large HDPE pipes require a wide infeed and heavy-duty blade carriers. Mixed rigid plastics are best handled by a double shaft machine. SUHUI manufactures four specialist shredder types to ensure the correct blade design and mechanical configuration is matched to the specific material stream.
Ready to select the right industrial plastic shredder for your recycling operation? Contact SUHUI Machinery to discuss your material stream, throughput requirements, and downstream process — our engineering team will recommend the optimal configuration.
