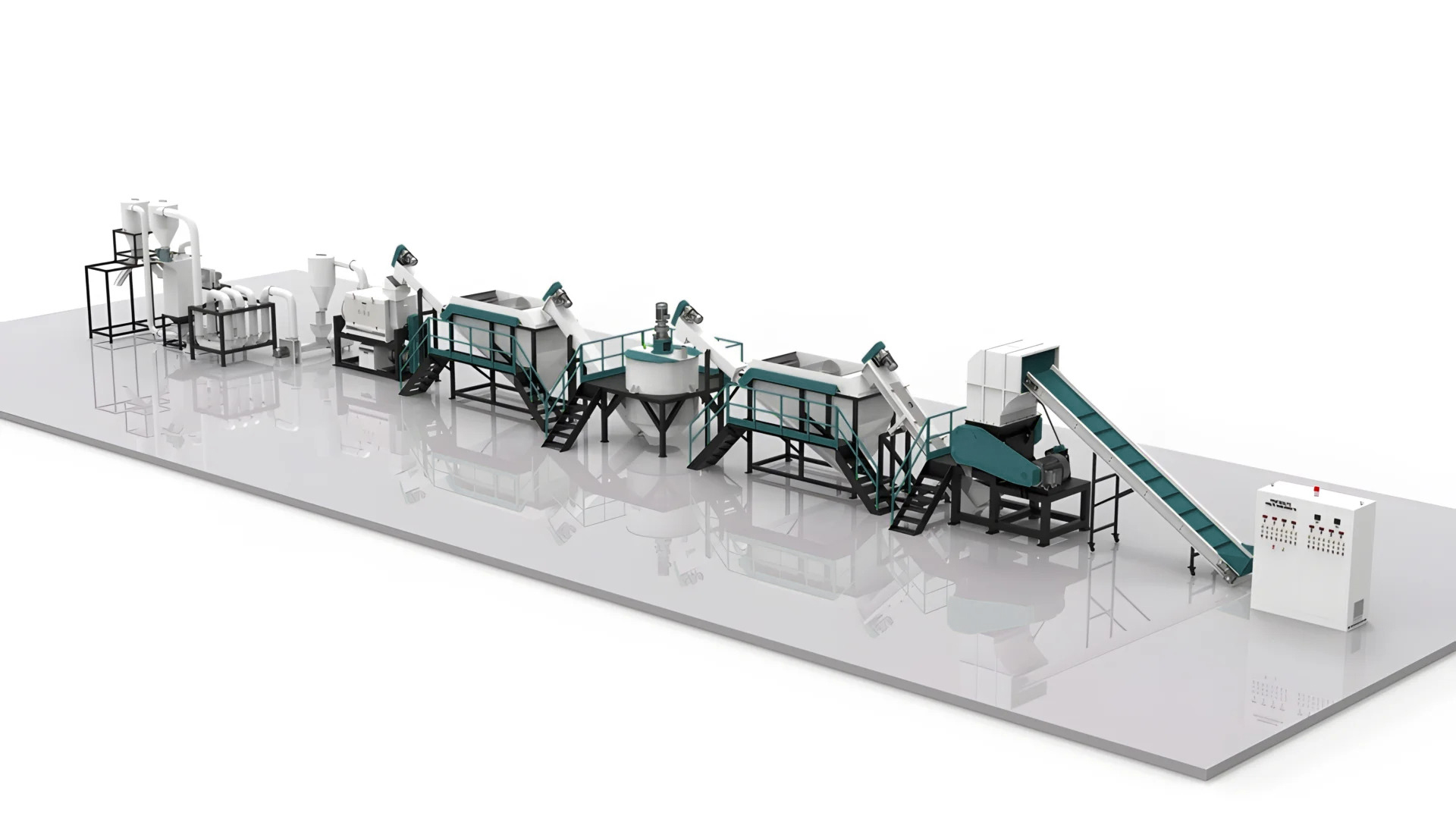

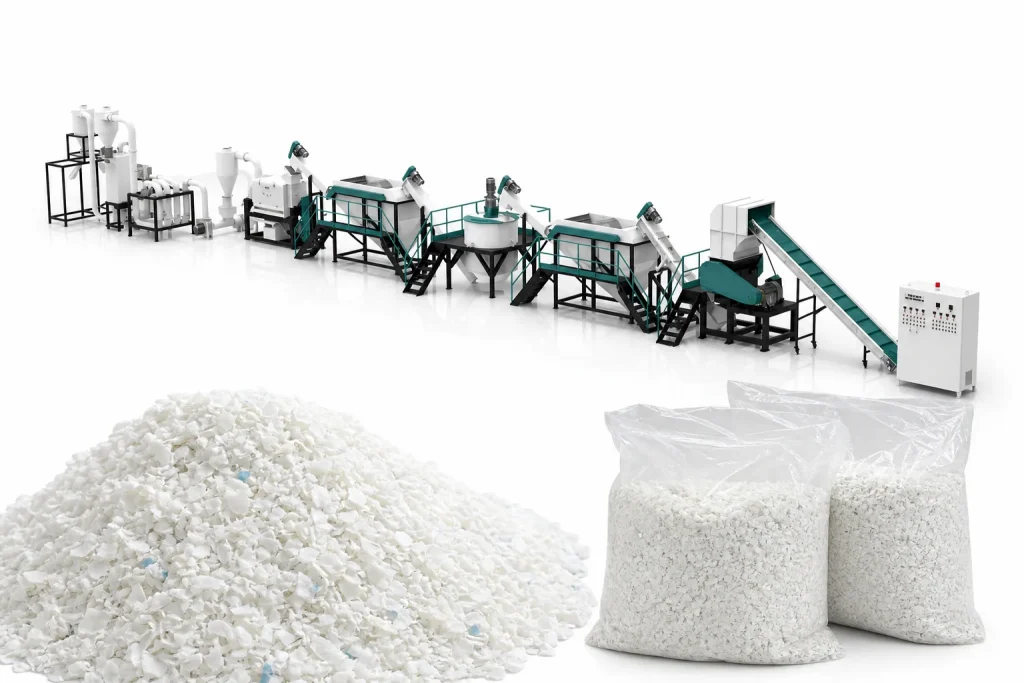

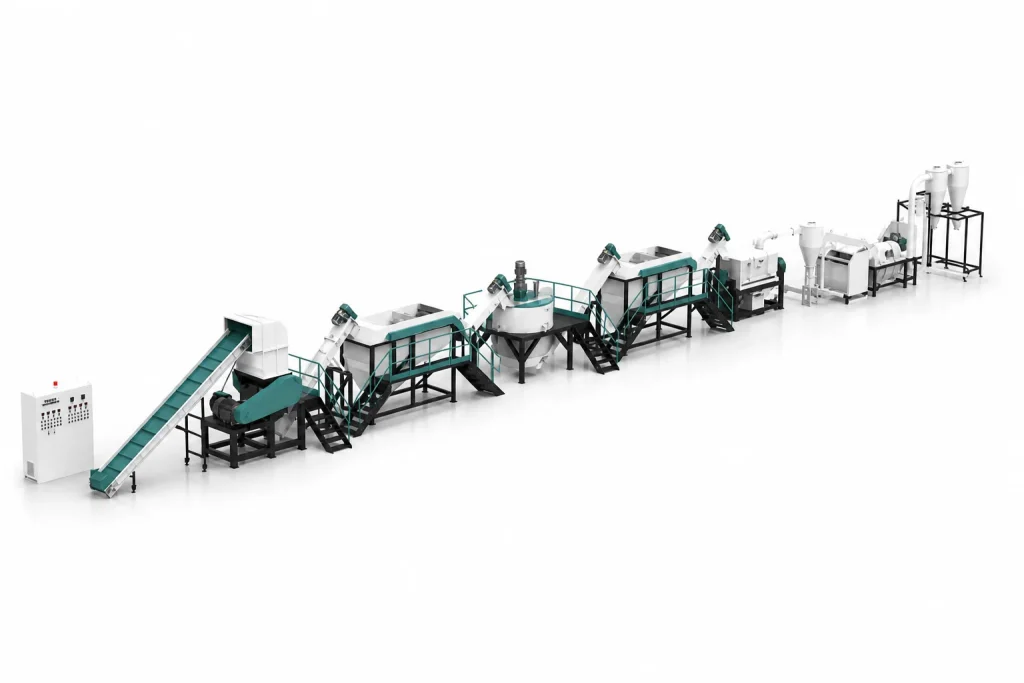

HDPE Rigid Milk Bottle Recycling Washing Line

The SUHUI HDPE rigid milk bottle recycling washing line specializes in processing post-consumer high-density polyethylene (HDPE) dairy packaging waste into clean, high-purity flakes or pellets suitable for reuse in food-contact or industrial manufacturing applications.

Designed specifically for the challenges of dairy bottle recycling, including milk fat residues, foil labels, adhesive sleeves, and mixed caps, the line integrates heavy-duty shredding, multi-stage hot alkaline washing, friction scrubbing, float-sink separation, and thermal drying to achieve consistently clean output for food-grade and non-food recycled material applications.

Built for operational efficiency, the system incorporates closed-loop water recycling that reduces fresh water consumption by up to 70%, low-energy drying technology, and automated non-HDPE removal. Processing capacity scales from 300 to 2,500 kg/h to suit small and large recycling operations.

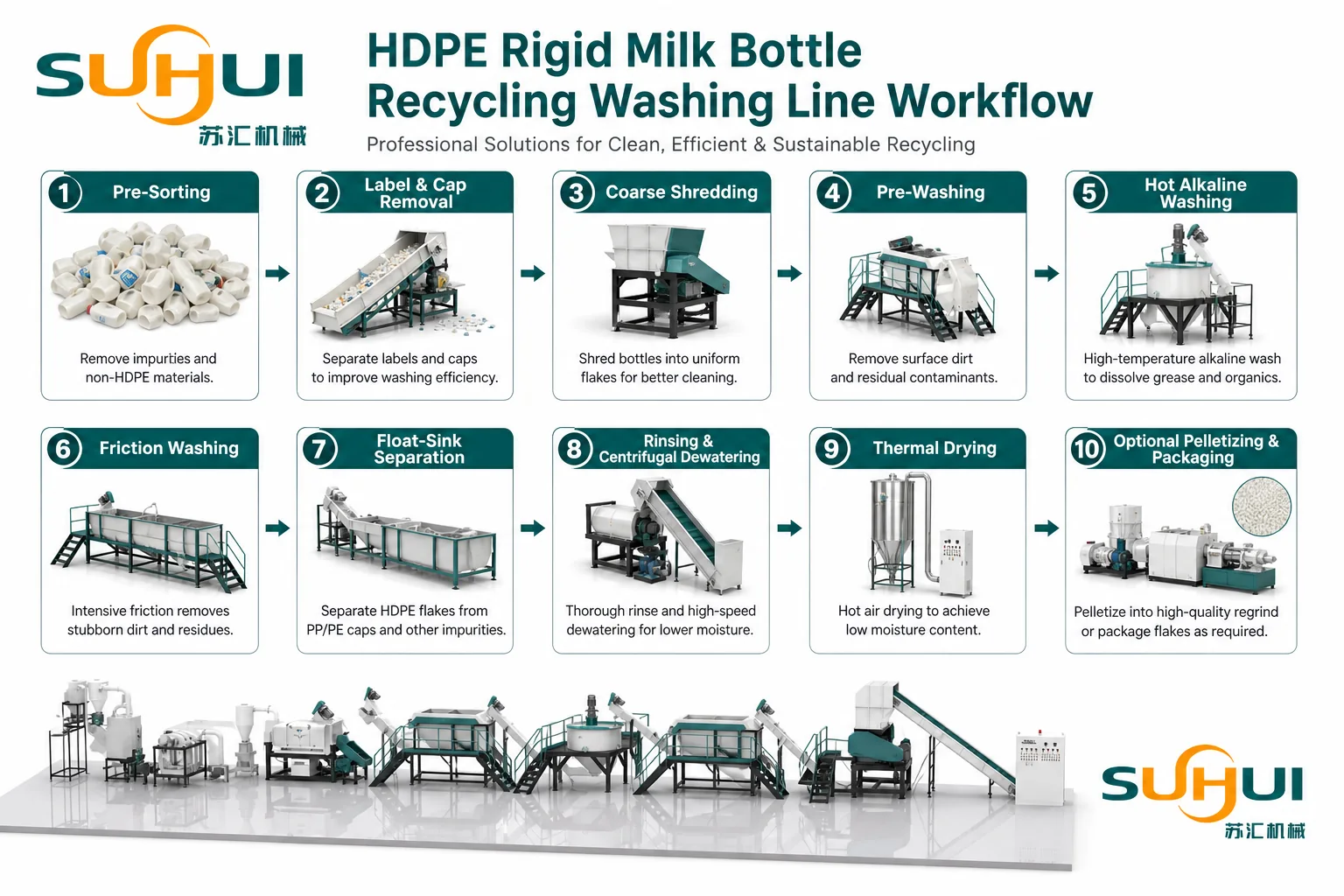

HDPE milk bottle recycling washing line workflow from pre-sorting, label and cap removal, shredding, washing, separation, drying and optional pelletizing.

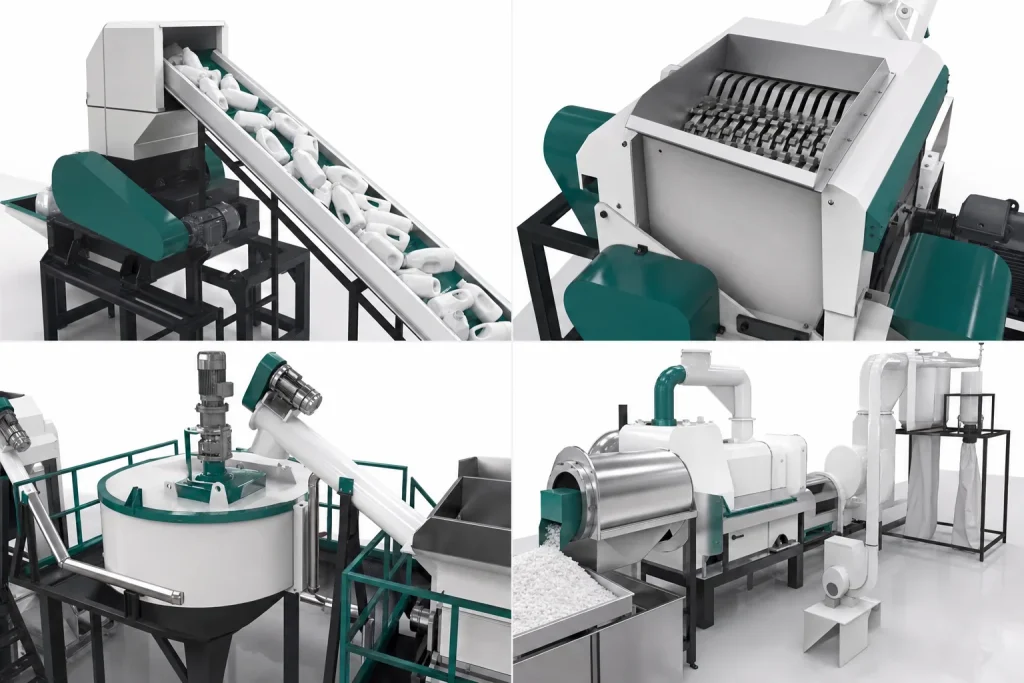

Key Features of SUHUI HDPE Milk Bottle Recycling Washing Line

• Heavy-Duty Shredding: Robust crushers reduce rigid HDPE milk bottles into uniform 10–15 mm flakes for consistent processing through all downstream washing stages.
• Label & Cap Removal System: Dedicated label separators and cap removal units detach PP/PE sleeve labels and residual caps before the main washing stages.
• Multi-Stage Hot Washing: Sequential pre-wash, hot alkaline wash at 60–80°C, and chemical cleaning stages progressively eliminate milk fat residues, adhesives, and organic contaminants.
• High-Speed Friction Scrubbing: Mechanical friction washers polish flake surfaces to remove embedded contaminants and label adhesive residues for high-purity output.
• Float-Sink Separation: Water density separation tanks separate HDPE flakes, which float, from denser contaminants including PVC, PET, and metal fragments.
• Automated Non-HDPE Sorting: Pneumatic separators and optical sensors detect and remove non-HDPE materials throughout the line.
• Closed-Loop Water Recycling: Integrated water treatment and recirculation system reduces fresh water consumption by up to 70%, lowering operating costs and environmental impact.
• Thermal Drying: Low-energy hot air dryers reduce final flake moisture content to below 1%, meeting requirements for direct pelletizing or packaging.
• Food-Grade Compliance Option: Optional UV sterilization stage supports applications requiring food-contact material standards for bottle-to-bottle or food packaging recycling.

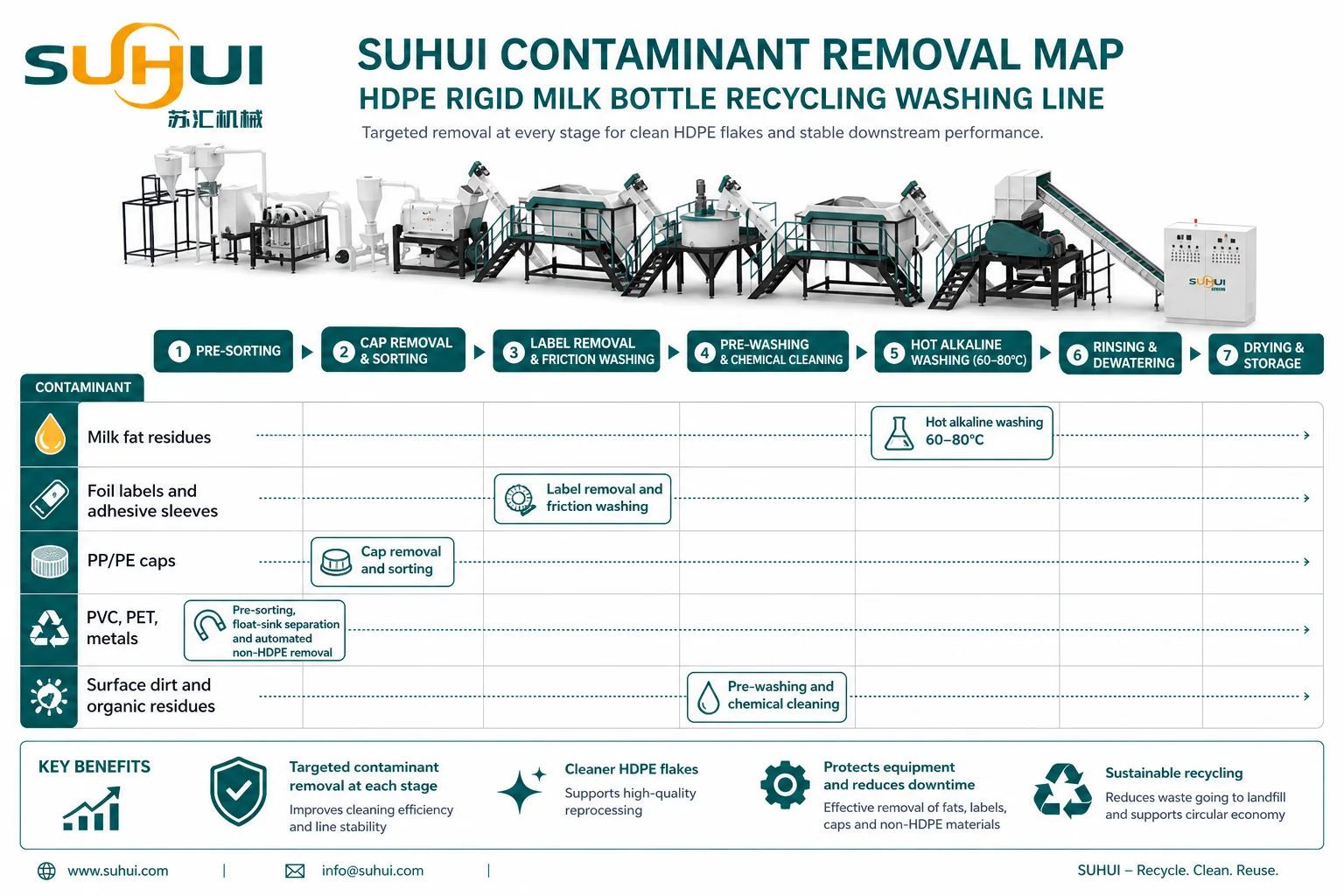

The HDPE milk bottle washing process targets milk fat residues, labels, caps, adhesives, PVC, PET, metals, surface dirt and organic residues through different removal stages.

HDPE Milk Bottle Recycling Washing Line Technical Data

Final configuration depends on feedstock condition, contamination level, capacity target, output requirements, and available factory layout. Contact SUHUI for a customized technical proposal.

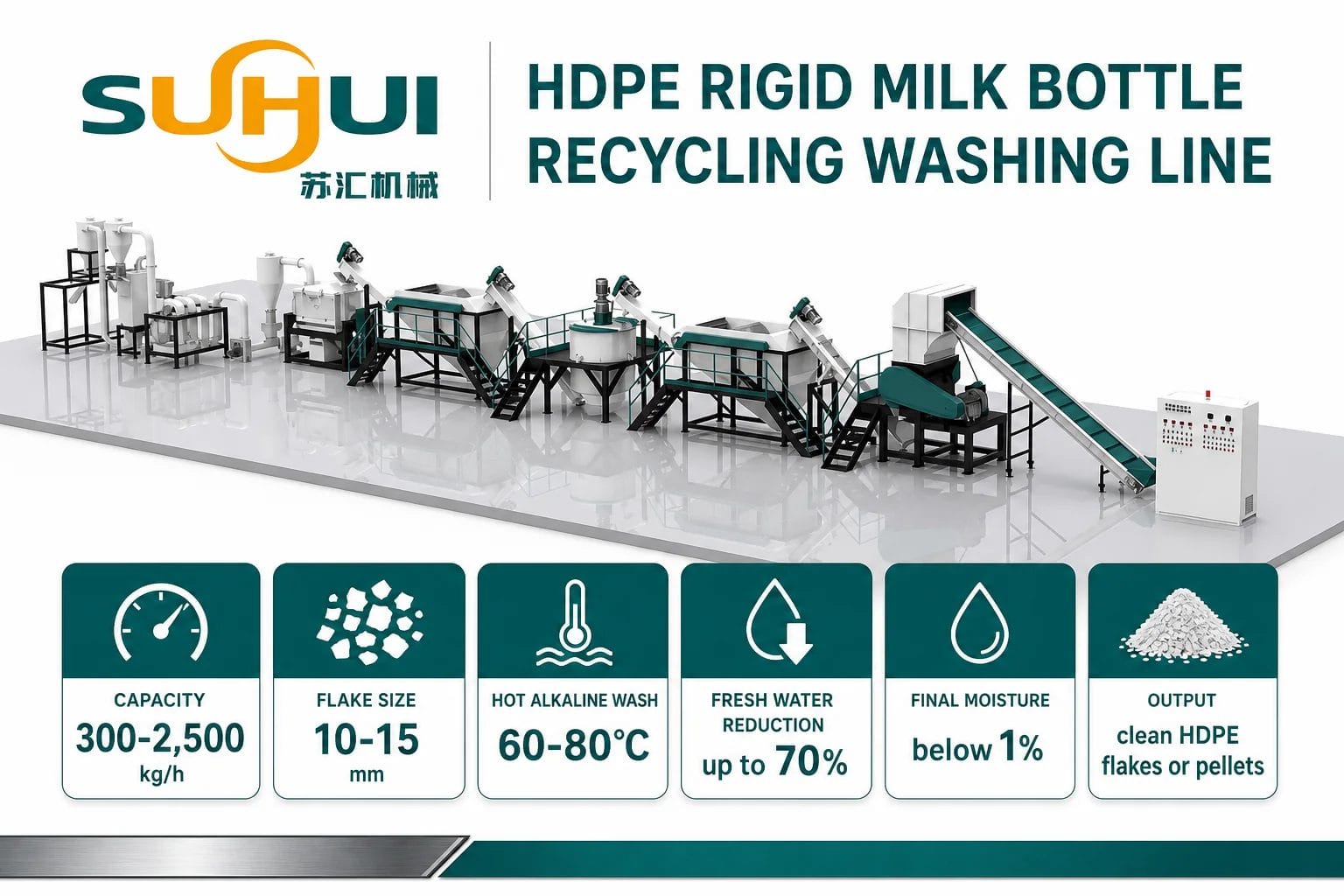

Standard HDPE milk bottle washing line configurations support 300 to 2,500 kg/h input capacity, 60–80°C hot alkaline washing, up to 70% fresh water reduction, and final moisture below 1%.

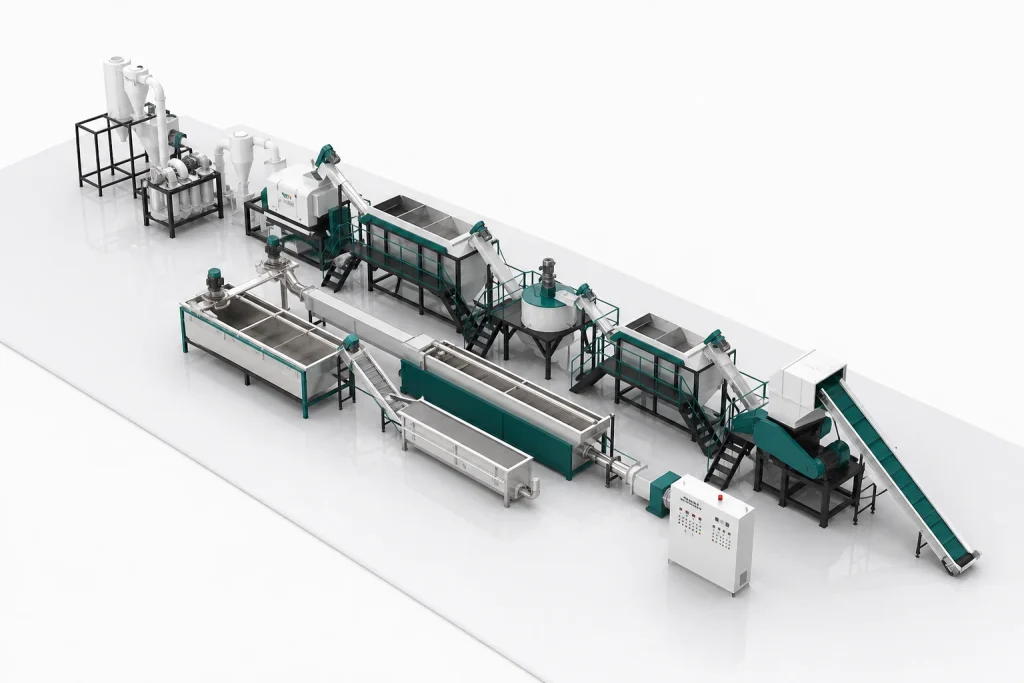

HDPE Milk Bottle Recycling Washing Line Process

1. Pre-Sorting: Incoming dairy bottles are manually or automatically sorted to remove non-HDPE items including foreign plastics, metals, and heavily contaminated waste.
2. Label & Cap Removal: Sleeve labels and residual caps are mechanically separated from the bottles before shredding to reduce contamination in downstream stages.
3. Coarse Shredding: Whole HDPE milk bottles are shredded into 10–15 mm flakes using a heavy-duty crusher or granulator.
4. Pre-Washing: Shredded flakes are rinsed with ambient-temperature water to remove loose dirt, residual milk, and surface debris.
5. Hot Alkaline Washing: Flakes are immersed in a heated alkaline wash tank at 60–80°C to dissolve milk fats, oils, and organic residues from flake surfaces.
6. Friction Washing: High-speed mechanical friction scrubbers remove embedded contaminants and adhesive residues, polishing the flake surface for higher output cleanliness.
7. Float-Sink Separation: Flakes pass through water separation tanks where HDPE, with density below 1 g/cm³, floats and is separated from denser contaminants including PVC and metal fragments.
8. Rinsing & Centrifugal Dewatering: Clean HDPE flakes are thoroughly rinsed with fresh water, then spun in a centrifugal dewatering unit to remove surface water.
9. Thermal Drying: A hot air drying system reduces residual moisture to below 1%, producing dry, clean HDPE flakes ready for pelletizing or direct use.
10. Pelletizing & Packaging (Optional): Dried flakes can be fed directly into a pelletizing extruder to produce recycled HDPE pellets, or bagged and stored for sale as clean flake material.

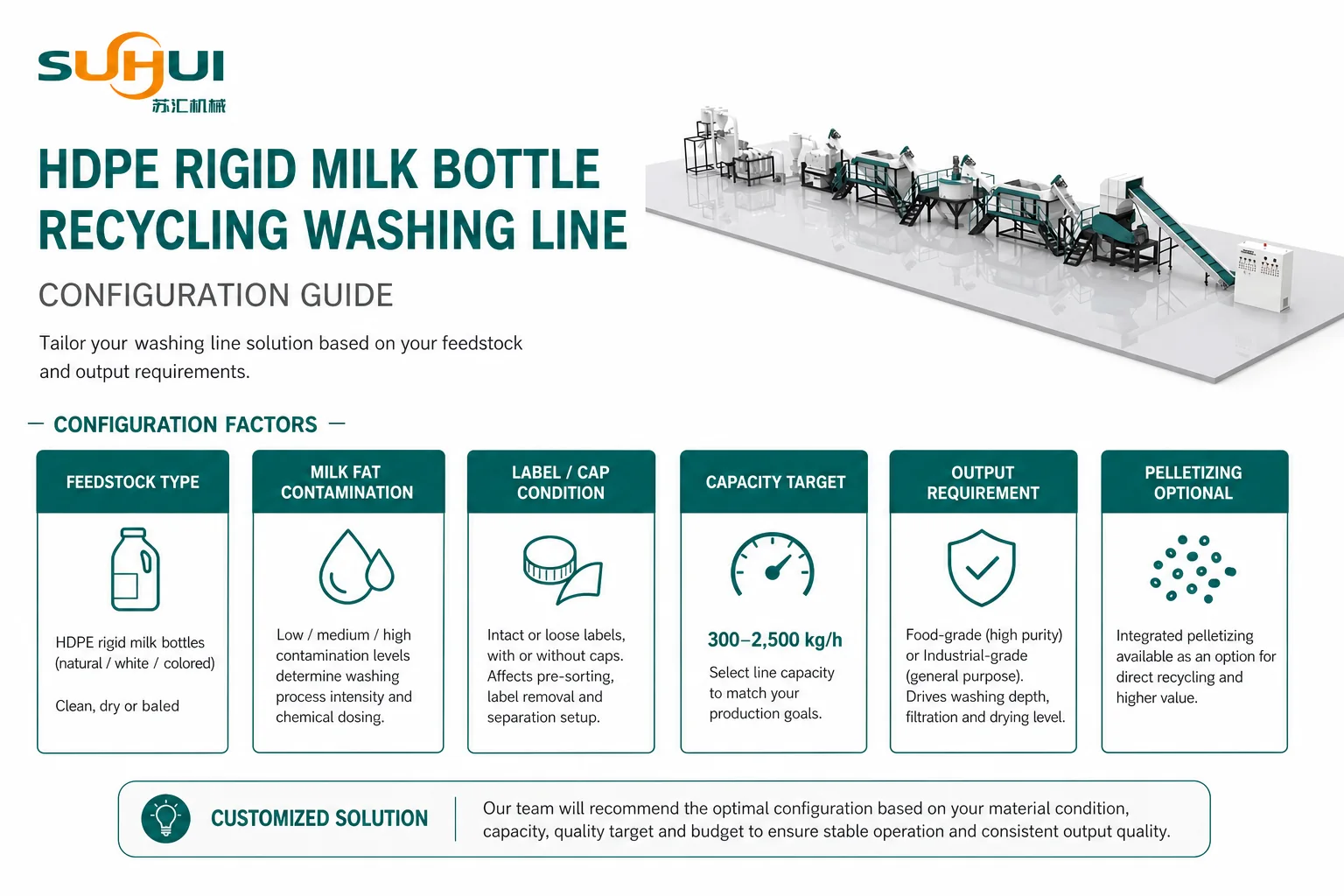

Final line configuration should be matched to feedstock type, milk fat contamination, label and cap condition, capacity target, output application, and optional pelletizing requirement.

Clean HDPE Flake and Pellet Output Applications

After shredding, washing, separation, dewatering, and thermal drying, clean HDPE flakes can be used in food-contact packaging applications when the required downstream compliance process is in place, or in industrial manufacturing applications that use recycled HDPE flakes or pellets.

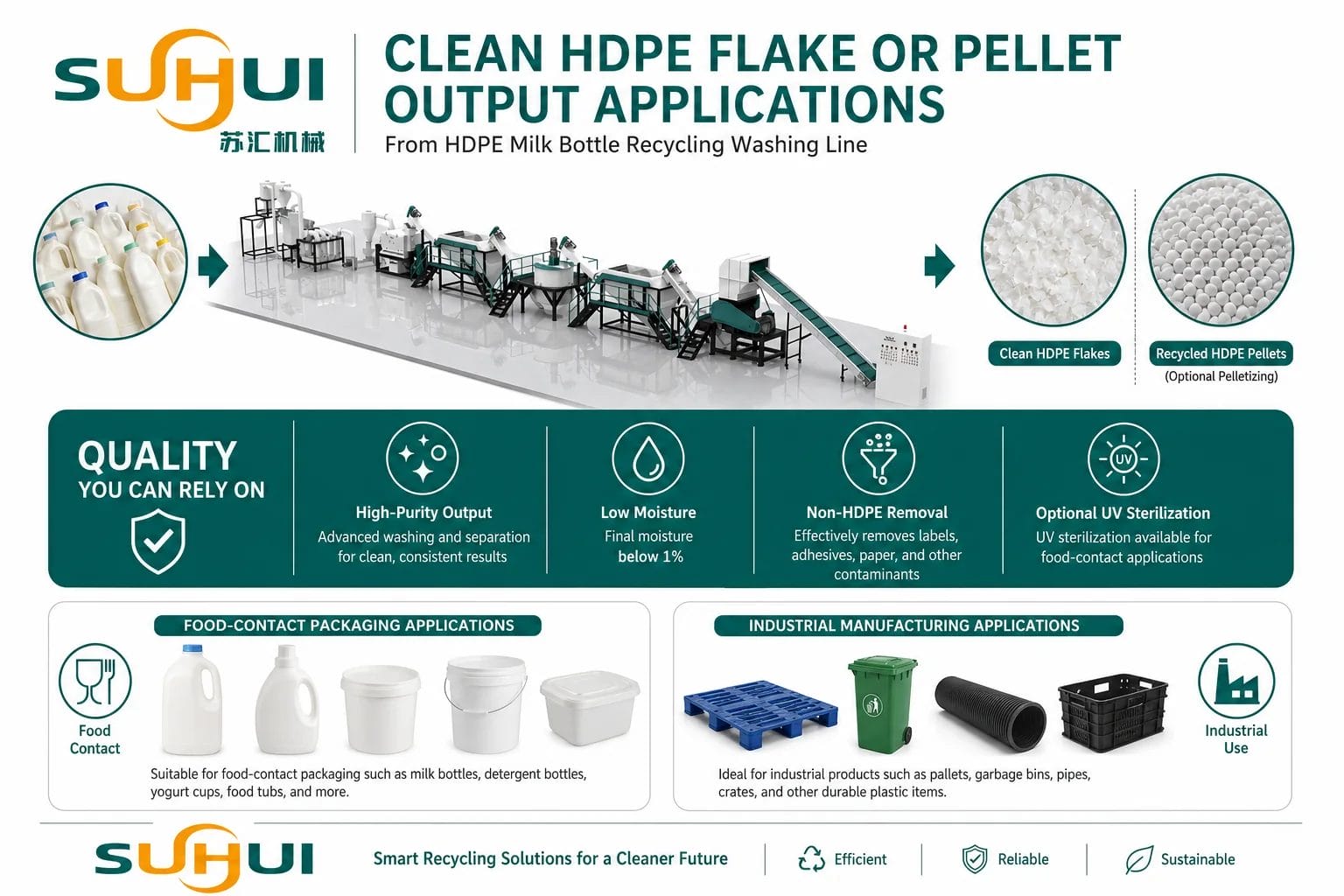

Clean HDPE flakes or optional recycled HDPE pellets can serve food-contact packaging projects and industrial manufacturing applications when matched to the required quality standard.

Closed-Loop Water Recycling System

The HDPE milk bottle washing line recirculates process water across pre-washing, hot alkaline washing, friction scrubbing, and float-sink separation. Physical filtration removes suspended solids, while chemical dosing restores pH and cleaning agent concentration before water is reused in the washing process.

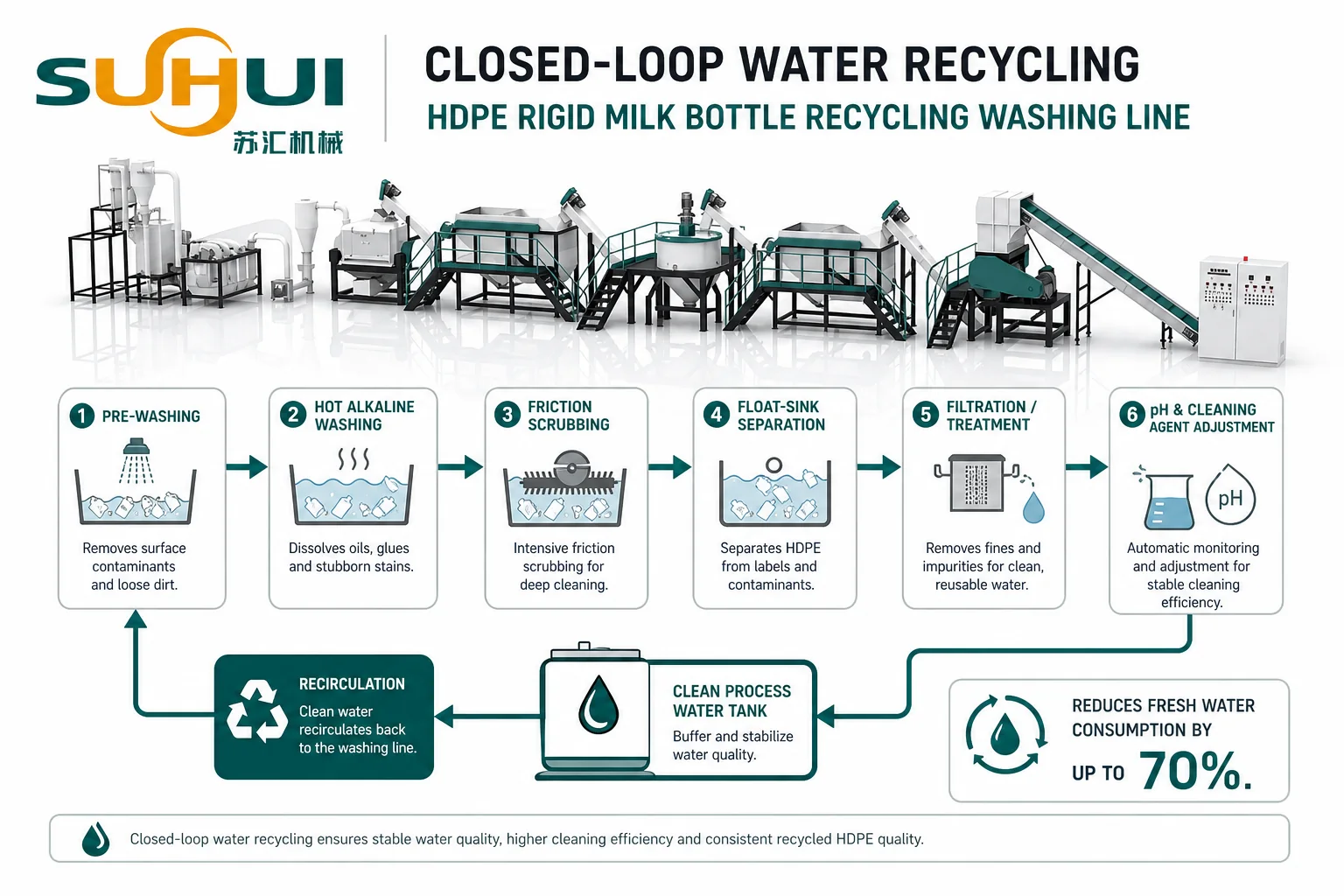

Closed-loop water recycling treats and reuses process water across the washing stages, reducing fresh water consumption by up to 70%.

Frequently Asked Questions

What types of HDPE dairy packaging does this washing line process?

The SUHUI HDPE rigid milk bottle recycling washing line is designed for post-consumer dairy packaging including HDPE milk bottles, juice bottles, and similar rigid dairy containers. It handles bottles with sleeve labels, residual PP or PE caps, and milk fat contamination.

How does the line achieve food-grade quality recycled HDPE output?

Food-grade quality depends on the complete cleaning sequence: shredding into 10–15 mm flakes, pre-washing, 60–80°C hot alkaline washing, friction scrubbing, float-sink separation, centrifugal dewatering, thermal drying below 1% moisture, and optional UV sterilization for food-contact applications.

What is the processing capacity range of the HDPE milk bottle washing line?

The SUHUI HDPE milk bottle recycling washing line supports throughput from 300 kg/h for smaller recycling operations to 2,500 kg/h for industrial-scale facilities. The modular design allows capacity to be matched to feedstock volume, factory layout, and downstream pelletizing requirements.

How does the closed-loop water recycling system work?

Process water from pre-washing, hot alkaline washing, friction scrubbing, and float-sink stages is collected, filtered, chemically adjusted, and recirculated back into the washing line. This closed-loop approach reduces fresh water consumption by up to 70% compared with open-circuit washing systems.

Can the line process HDPE bottles with attached labels and caps?

Yes. The line includes dedicated label and cap removal systems upstream of shredding. Removing labels and caps before shredding prevents them from becoming fine fragments that are harder to separate downstream, improving final HDPE flake cleanliness.

What is the typical purity and moisture level of the output HDPE flakes?

Properly processed HDPE flakes can achieve above 99% HDPE content, with residual contaminants reduced to below 1% by weight. Final flake moisture after thermal drying is below 1%. Specific purity outcomes depend on input material consistency and upstream sorting quality.
